Запчасти Case IH STEIGER 470 (35.733.AC[04]) - REAR AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

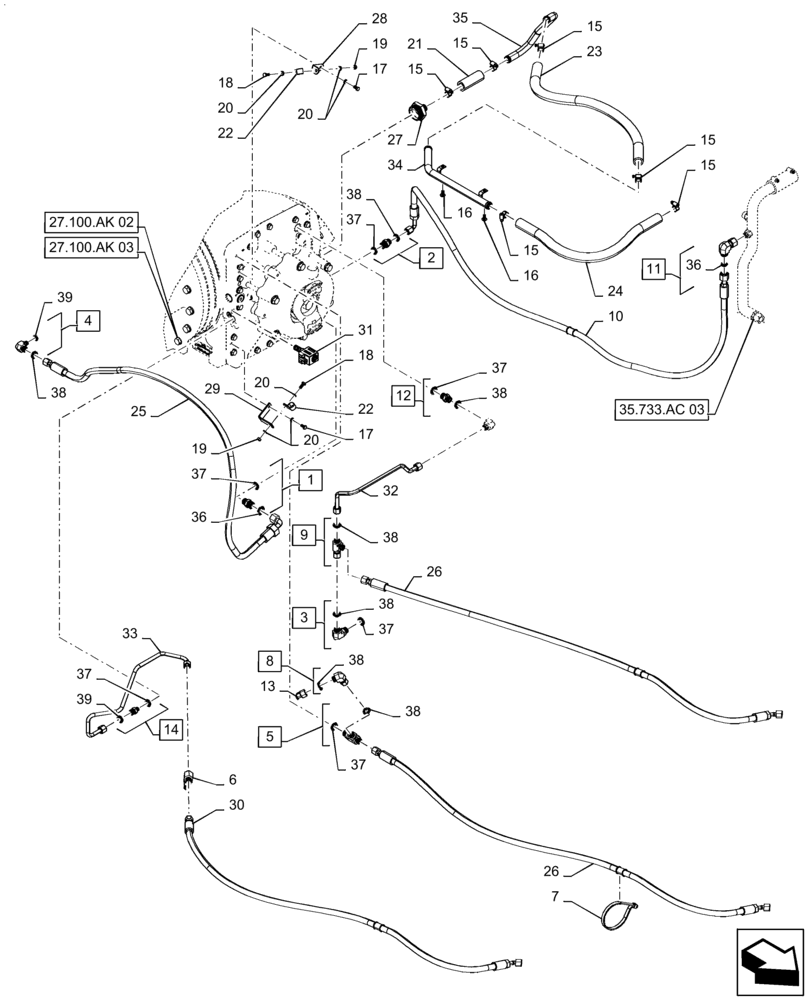

Схема запчастей Case IH STEIGER 470 - (35.733.AC[04]) - REAR AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
37
33
36
39
27
37
37
20
5
20
32
26
15
16
4
25
37
30
17
1
14
36
35
21
38
6
29
15
37
8
19
20
27.100.ak 02
22
38
28
38
17
38
7
15
24
38
22
39
35.733.ac 03
15
13
34
15
38
9
15
3
37
12
26
19
10
20
16
27.100.ak 03
18
2
38
11
23
18
31

Артикул

Название

Примечание

Количество

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 36 - 37

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 37 - 38

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 37 - 38

1шт.

4

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 38 - 39

1шт.

5

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 37 - 38

1шт.

6

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

7

440567A1

CABLE TIE

20"

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 38

1шт.

9

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 38

1шт.

10

47412088

HYDRAULIC HOSE,12.7mm ID x 2311mm L, SAE 100R1

Brake Drain, Serial Range: ZEF300001-ZFF304721

1шт.

10

47820774

HYDRAULIC HOSE

Brake Drain, Serial Range: ZFF304722-ZFF306001

1шт.

10

47921714

HOSE

Brake Drain, Start Serial: ZFF308016

1шт.

11

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

Incl 36, Serial Range: ZEF300001-ZFF304721

1шт.

12

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Valve, 25 PSI, M22 x 1.5 ORB x 13/16" - 16 ORFS, Incl 37 - 38

1шт.

13

190316A1

COUPLING

Diagnostic

1шт.

14

341195A1

ORIFICE

13/16" - 16 ORFS x M14 x 1.5 ORB, Incl 37, 39

1шт.

15

47613530

HOSE CLAMP,38mm ID

10шт.

16

920019731

SCREW,BTN HD, M8 x 20mm, SST

2шт.

17

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

21

31-2757

HOSE,1.00" ID x 4.00"

1шт.

22

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

23

370250A1

HOSE

1" ID x 39"

1шт.

24

87390647

HOSE

1" ID x 29"

1шт.

25

84189754

HOSE ASSY.

Auxiliary Drain To Rear Axle

1шт.

26

84280346

HOSE ASSY.

Axle Supply

2шт.

27

337545A1

HYD CONNECTOR

Axle Discharge, 2-1/4" - 12 x 1" Hose Barb

1шт.

28

369960A1

BRACKET

Full Line

1шт.

29

416512A1

BRACKET

Axle

1шт.

30

84281779

HOSE ASSY.

Park Brake Pressue

1шт.

31

384977A1

VALVE

Solenoid, Diff Lock

1шт.

32

84280344

RIGID TUBE

Rear Diff Lock Supply

1шт.

33

84280342

RIGID TUBE

Axle Lube, Rear Axle

1шт.

34

84217058

HYD TUBE

Rear Axle To Tank

1шт.

35

84280337

RIGID TUBE

Rear Axle Drain

1шт.

36

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

37

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

6шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

39

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

Выбрано товаров: 41
