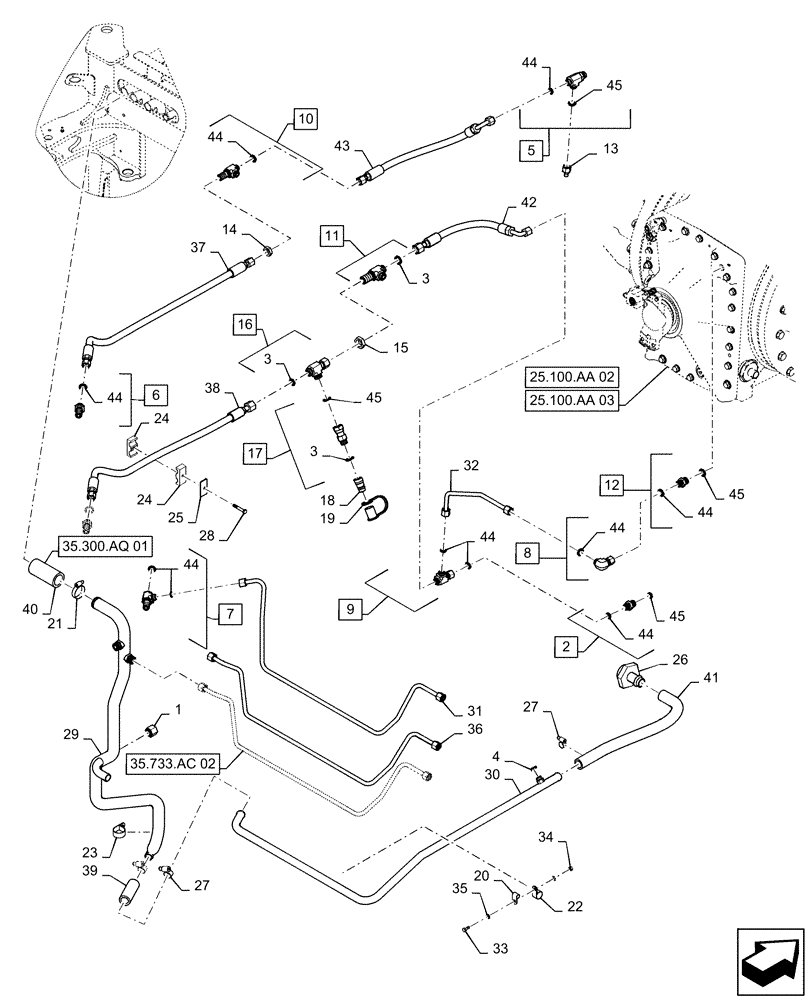

Запчасти Case IH STEIGER 470 (35.733.AC[01]) - FRONT AXLE LUBRICATION LINES, W/O DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

1

701-906

CAP,1" - 14

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 44 - 45

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

9шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 44 - 45

1шт.

6

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 44

2шт.

7

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 44

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 44

1шт.

9

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 44

1шт.

10

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 44

1шт.

11

84191902

RUN TEE

1" - 14 ORFS, Bulkhead, Incl 3

1шт.

12

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Valve, 25 PSI, M22 x 1.5 ORB x 13/16" - 16 ORFS, Incl 44 - 45

1шт.

13

190316A1

COUPLING

Diagnostic

1шт.

14

701-903

NUT,13/16" - 16

4шт.

15

701-919

BHD LOCK NUT,1" - 14

1шт.

16

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 3

1шт.

17

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

M22 x 1.5 ORB x 1" - 14 ORFS, Incl 3, 45

1шт.

18

392690A1

COUPLING

Male

1шт.

19

399032A1

CAP

Dust

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

21

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

22

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

23

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

24

50-2551T1

CLAMP

Double Tube

2шт.

25

50-2533T1

PLATE

Clamp Cover

1шт.

26

337545A1

HYD CONNECTOR

Axle Discharge, 2-1/4" - 12 x 1" Hose Barb

1шт.

27

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

4шт.

28

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

29

84280339

RIGID TUBE

Main Axle Drain, Serial Range: ZEF300001-ZFF304721

1шт.

29

47820848

TUBE

Main Axle Drain, Serial Range: ZFF304722-ZFF306001

1шт.

29

47921718

TUBE

Main Axle Drain, Start Serial: ZFF308016

1шт.

30

84178840

HYD TUBE

Front Axle Drain To Tank

1шт.

31

84178848

HYD TUBE

Park Brake Supply

1шт.

32

84224484

RIGID TUBE

Axle Lube Crossover

1шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

36

84178851

HYD TUBE

Tow Valve Drain To Tank

1шт.

37

84178872

HOSE ASSY.

Service Brake, Front Axle

1шт.

38

84248660

HOSE ASSY.

Axle Lube Pressure, Front Axle

1шт.

39

31-2757

HOSE,1.00" ID x 4.00"

1шт.

40

1-4571

HOSE

1.5" ID x 4.50" Long

1шт.

41

327491A1

HOSE ASSY.

1" ID x 26" Long

1шт.

42

84197910

HOSE ASSY.,12.7mm ID x 450mm L, SAE 100R1

Axle Lube, Front Axle

1шт.

43

84181005

HOSE ASSY.,12.7mm ID x 550mm L, SAE 100R1

Brake Pressure, Front Axle

1шт.

44

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

16шт.

45

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.
