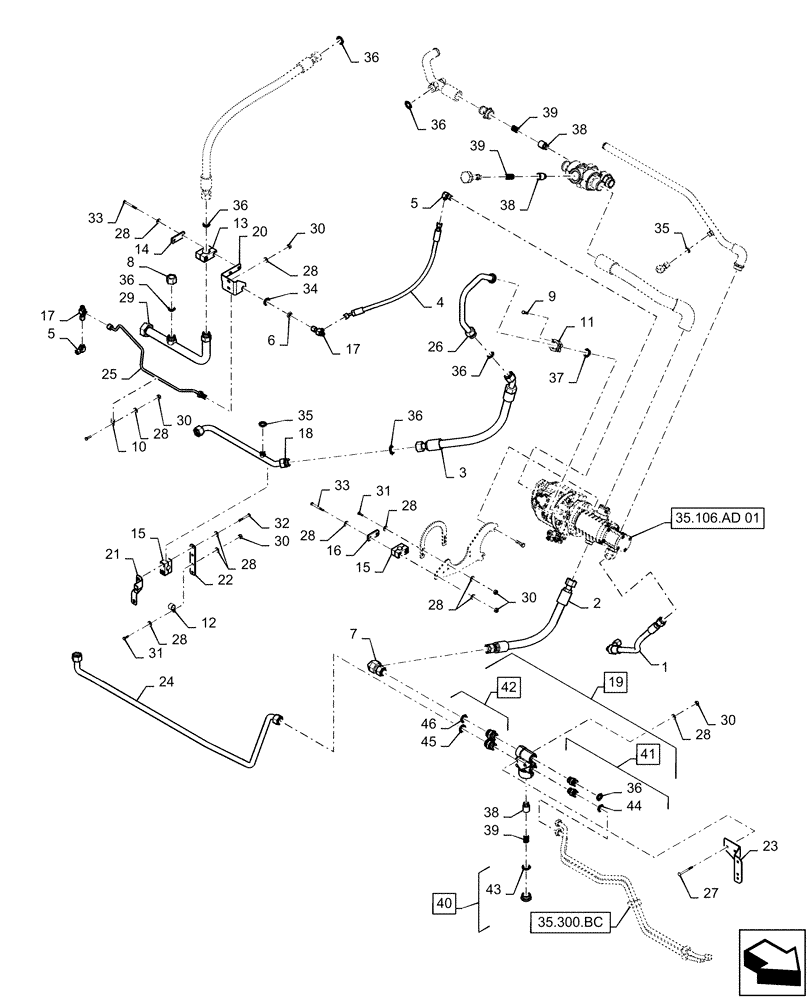

Запчасти Case IH STEIGER 470 (35.322.AY[01]) - VAR - 420301 - STANDARD HYDRAULIC SYSTEM LINES (35) - HYDRAULIC SYSTEMS

1

84288297

HOSE ASSY.,15.88mm ID x 673mm L, SAE 100R1

Axle Lube Pressure

1шт.

2

84288304

HOSE ASSY.,25.4mm ID x 572mm L, SAE 100R1

Cooler Supply, Pump To Oil Cooler

1шт.

3

84199748

HOSE ASSY.

Pump Pressure, Pump To Priority Valve

1шт.

4

84288307

HOSE ASSY.,9.53mm ID x 635mm L, SAE 100R17

Load Sense, Pump

1шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

6

701-909

NUT,11/16" - 16

1шт.

7

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

8

701-901

CAP,1-7/16" - 12

1шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

11

A12306

FLANGE

Split Half Clamp, 1"

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

13

8500621

BLOCK

Tube Mounting

1шт.

14

8500858

PLATE

Clamp Cover

1шт.

15

367489A1

BLOCK

Tube Mounting

2шт.

16

367658A1

PLATE

Clamp Cover

1шт.

17

300209A1

VALVE

Shuttle

2шт.

18

84180136

HYD TUBE

Hydraulic Pressure To Priority Valve

1шт.

19

84194708

VALVE BODY

Cooler By-Pass, Incl 38 - 42

1шт.

20

47496493

BRACKET

Tube Support, Hydraulic Return

1шт.

21

84180078

BRACKET

Tube Support, Hydraulic Charge

1шт.

22

84180104

PLATE

Tube Clamp

1шт.

23

84535636

BRACKET

Cooler By-Pass Valve

1шт.

24

47464814

HYD TUBE

Charge Pressure, Manifold To Oil Cooler

1шт.

25

84180126

HYD TUBE

Load Sense, Pump

1шт.

26

84288287

TUBE

Pump Pressure

1шт.

27

47520616

CARRIAGE BOLT,Short Sq Nk, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90mm, Class 8.8, ZND

2шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

19шт.

29

47494055

HYD TUBE

Filter Out To Hydraulic Suction

1шт.

30

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

31

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

32

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

33

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

4шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

6шт.

37

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

38

107453A1

PLUNGER

Relief

1шт.

39

431858A1

SPRING

Relief

1шт.

40

221528A1

PLUG,Hex Soc, M42 x 2, ORB

Incl 43

1шт.

41

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 36, 44

2шт.

42

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 45 - 46

2шт.

43

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

44

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

45

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

46

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
