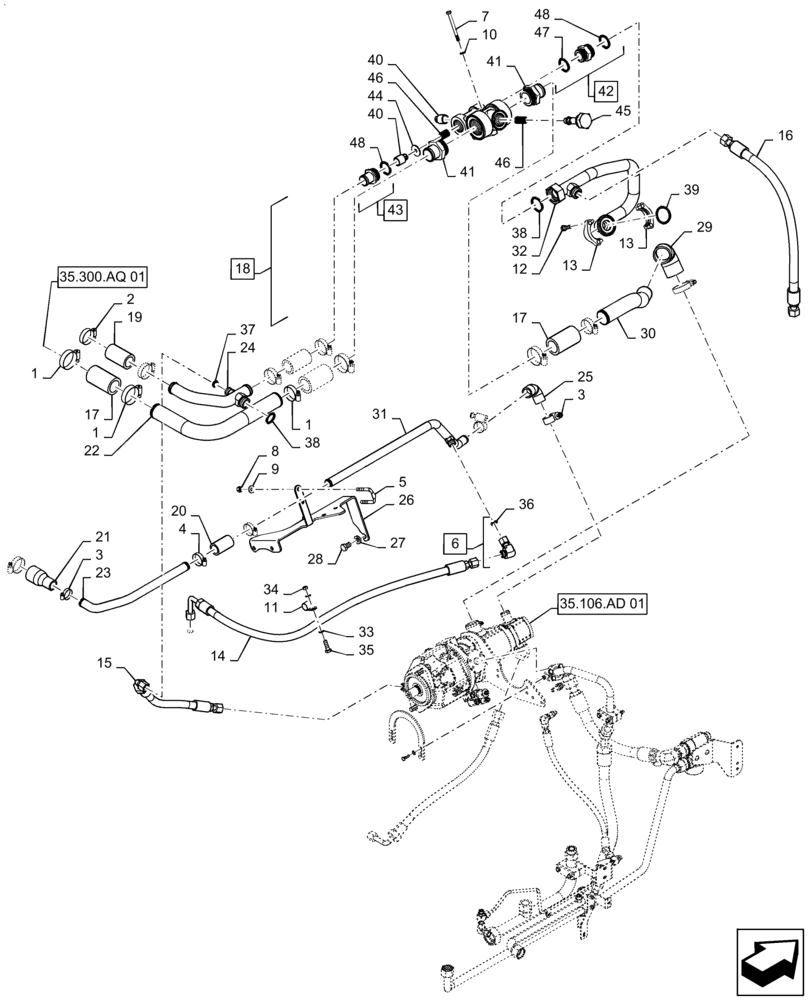

Запчасти Case IH STEIGER 470 (35.322.AJ[01]) - VAR - 420301 - STANDARD HYDRAULIC PUMP SUPPLY LINES (35) - HYDRAULIC SYSTEMS

1

214-1536

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner

9шт.

2

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

4шт.

3

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

3шт.

4

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

2шт.

5

253410A1

U-BOLT,M10 x 1.5 x 67mm

1шт.

6

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 36

1шт.

7

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

11

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

12

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

13

A14141

FLANGE

Split Half Clamp, 2"

2шт.

14

84420675

HOSE ASSY.,12.7mm ID x 1168mm L, SAE 100R1

Air Supply, Hydraulic Tank To Axle Lube Supply Tube

1шт.

15

84376575

HOSE ASSY.,15.88mm ID x 533mm L, SAE 100R1

Pump Drain, Hydraulic Pump To Tank Return Tube

1шт.

16

84241016

HOSE ASSY.

Hydraulic Suction, Tank Return

1шт.

17

427140A1

HOSE,50.80 mm ID x 101.60 mm

3шт.

18

84197046

VALVE

Charge Relief, Incl 40 - 48

1шт.

19

84175844

LARGE HOSE

1.5" ID x 3.5" Long

2шт.

20

31-2594

HOSE,1.25" ID x 4.00"

1шт.

21

84379048

HOSE ASSY.

Adapter

1шт.

22

84376568

TUBE

Main Charge Supply, Hydraulic Tank To Charge Relief Valve

1шт.

23

84419044

HYD TUBE

Axle Lube Charge, Hydraulic Tank To Axle Lube Supply Tube

1шт.

24

84376571

TUBE

Tank Return, Charge Relief Valve To Hydraulic Tank

1шт.

25

84180096

PLASTIC-RUBBER TUBE

Elbow, 1-1/4" ID

1шт.

26

84376576

BRACKET

Charge Valve Support

1шт.

27

496-81022

WASHER

0.656" x 1.250" x 0.239", ZND

1шт.

28

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

1шт.

29

84180095

HOSE

Elbow, 2" ID

1шт.

30

84376569

TUBE

Main Charge Supply, Charge Relief Valve To Pump

1шт.

31

84376566

TUBE

Axle Lube Supply, Axle Lube Supply Tube To Pump

1шт.

32

84376572

TUBE

Pump Supply, Charge Relief Valve To Pump

1шт.

33

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

39

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

40

107453A1

PLUNGER

Relief

2шт.

41

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

2" Hose Barb x 2-1/2" - 12

2шт.

42

201-148

ELBOW UNION

2" - 12 x 1-7/8" - 12, Incl 47 - 48

1шт.

43

217-174

FITTING,1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

Incl 48

1шт.

44

84193990

WASHER,12.9mm ID x 43mm OD x 3mm Thk

Spring Retainer

1шт.

45

84196675

PLUG,1-7/8" - 12

Check Retainer

1шт.

46

431858A1

SPRING

Relief

2шт.

47

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

48

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

2шт.
