(21.155.AN[16]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 470 SCRAPER, ASN ZFF308001

Запчасти Case IH STEIGER 470 (21.155.AN[16]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 470 SCRAPER, ASN ZFF308001 (21) - TRANSMISSION

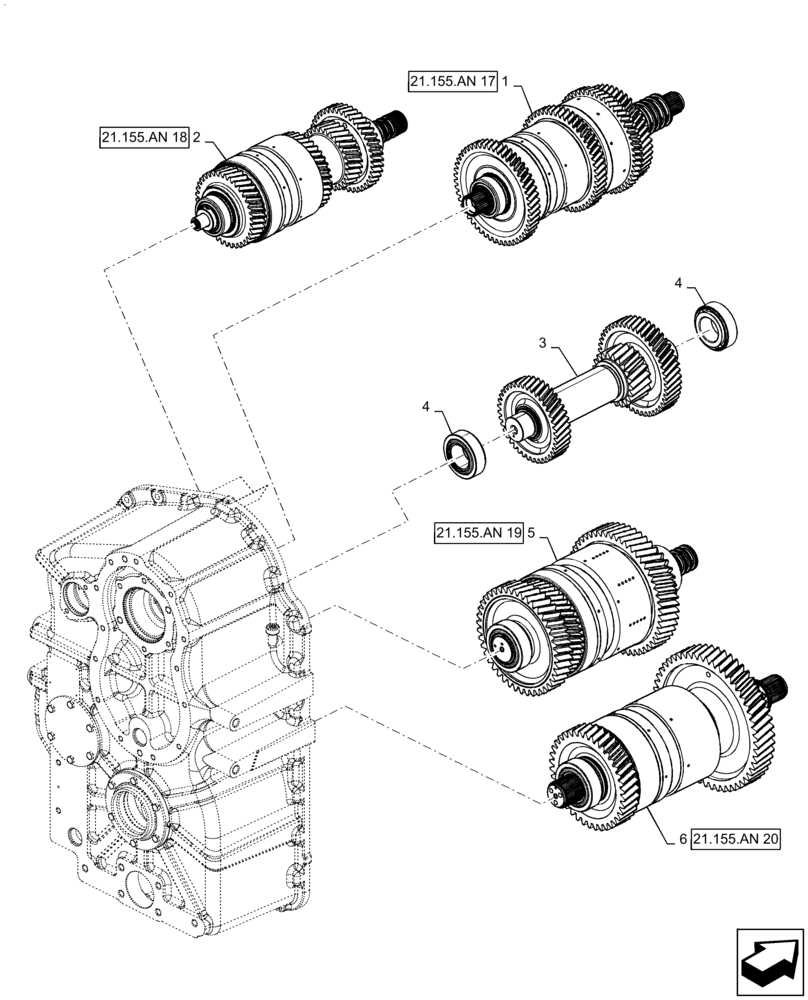

Схема запчастей Case IH STEIGER 470 - (21.155.AN[16]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 470 SCRAPER, ASN ZFF308001 (21) - TRANSMISSION
3
2
4
21.155.an 19
21.155.an 20
1
4
21.155.an 18
5
21.155.an 17
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87552050

CLUTCH INPUT SHAFT

1st, 7" Clutch

1шт.

2

87350264

CLUTCH INPUT SHAFT

2nd, 7" Clutch

1шт.

3

47582431

SHAFT

3rd, PS4 JR and PS4 SR

1шт.

4

87431397

ROLLER BEARING,60mm ID x 110mm OD x 38mm W

Tapered

2шт.

5

47582465

SHAFT

4th, 9" Clutch

1шт.

6

47582507

SHAFT

5th, 8" Clutch

1шт.

Выбрано товаров: 6
