Запчасти Case IH STEIGER 470 (21.155.AN[06]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 470 SCRAPER, BSN ZFF308000 (21) - TRANSMISSION

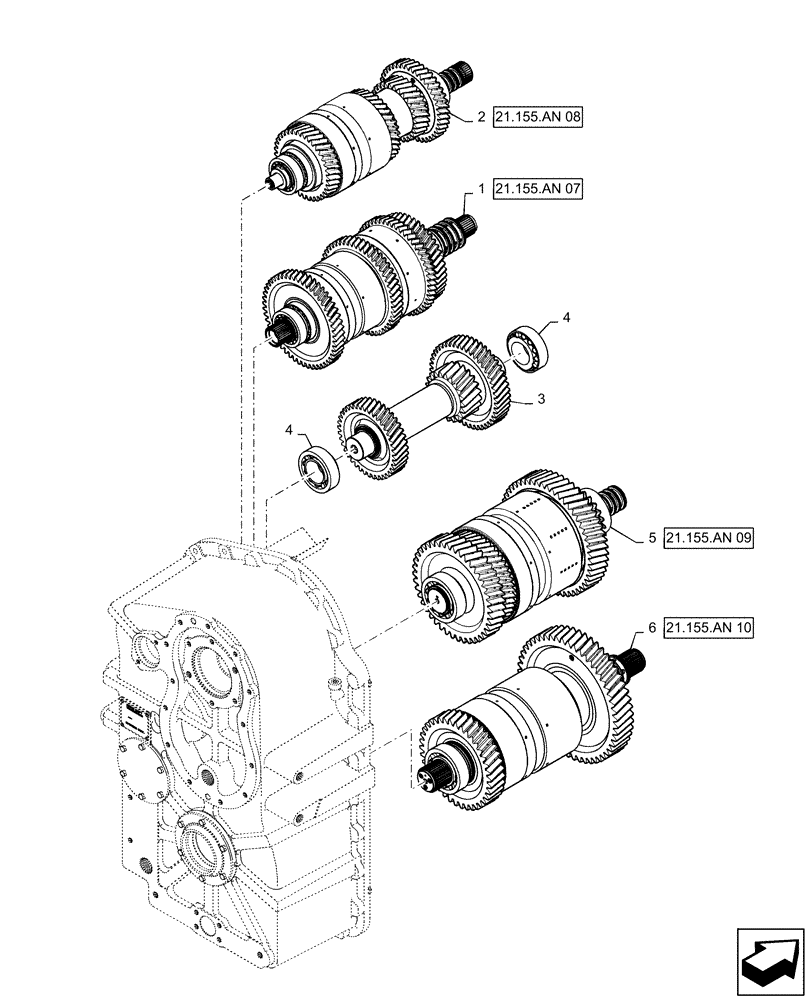

![Схема запчастей Case IH STEIGER 470 - (21.155.AN[06]) - TRANSMISSION, SHAFT ASSY, PS4, 8.5C, 470 SCRAPER, BSN ZFF308000 (21) - TRANSMISSION](https://partsell.ru/storage/images/caseih/5169811.png)
3
21.155.an 10
1
5
4
21.155.an 07
6
4
2
21.155.an 08
21.155.an 09
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
87552050
CLUTCH INPUT SHAFT
1st Shaft, 7" Clutch, 8.5C
1шт.
2
87350264
CLUTCH INPUT SHAFT
2nd Shaft, 7" Clutch, 8.5C
1шт.
3
47391078
GEAR SHAFT
3rd Shaft
1шт.
4
87431397
ROLLER BEARING,60mm ID x 110mm OD x 38mm W
Tapered
2шт.
5
87350309
CLUTCH INPUT SHAFT
4th Shaft, 9" Clutch, 8.5C
1шт.
6
87350342
CLUTCH INPUT SHAFT
5th Shaft, 8" Clutch, 8.5C
1шт.
Выбрано товаров: 6
