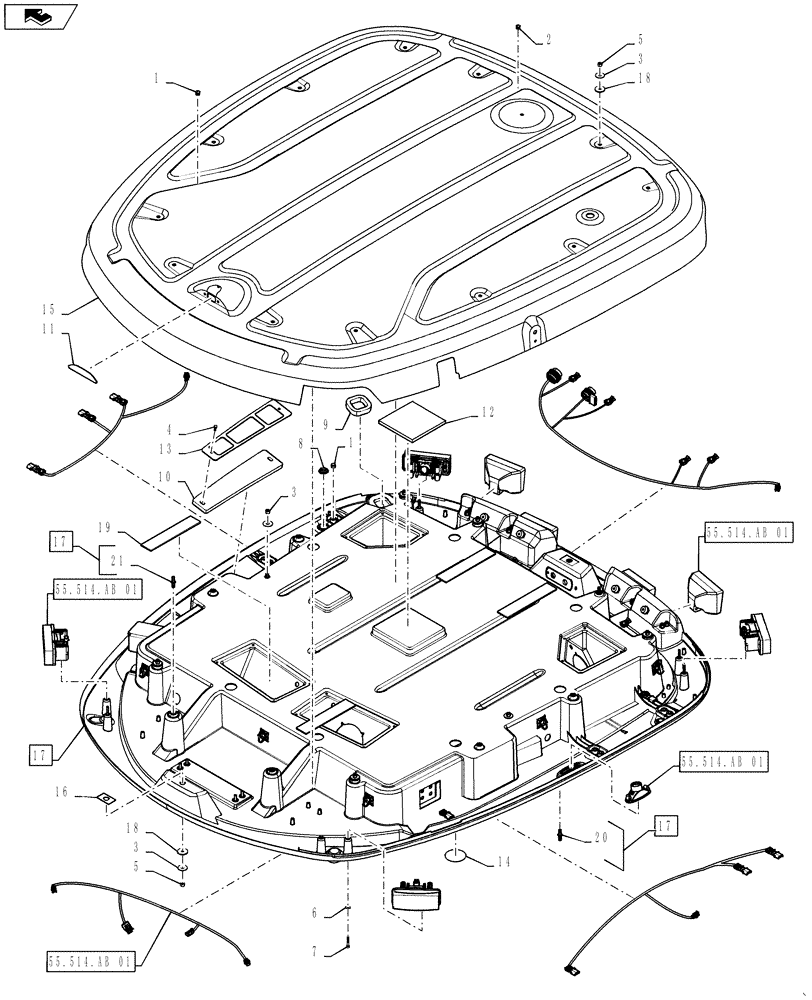

Запчасти Case IH STEIGER 450 (90.150.BG[01]) - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

353-401

PLUG,Dome, .312" hole, Nylon

1шт.

2

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

3

495-81140

WASHER,13/32" x 1 1/4" x .060"

16шт.

4

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

28шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

8шт.

8

14507787

PLUG,Retaining Lip, 25mm

Trim M25 Style B

2шт.

9

84155147

SEAL

GASKET, HVAC Intake, Roof

1шт.

10

84211797

AIR FILTER

HVAC Intake, Roof

1шт.

11

84257769

COVER

COVER, No Auto-Guidance

1шт.

12

NSS

NOT SOLD SEPARAT

PAD, FOPS Plate - See Figure 90.150.07

1шт.

13

84303099

COVER PLATE

PLATE, HVAC Filter

1шт.

14

84353524

DECAL

COVER, No FOPS Plate

1шт.

15

84586508

ROOF

Upper

1шт.

16

84402690

FOAM INSULATION

Spacer

2шт.

17

84405986

ROOF

Lower, Incl 20 - 21

1шт.

18

221429A2

SPACER

14шт.

19

403325A2

FOAM,30mm x 50mm x 250mm

Spacer, Adhesive Backed

6шт.

20

87328596

STUD

M6 X 1.0, Double Ended, High-Lo

4шт.

21

237275A1

STUD

Double Ended, High-Lo

20шт.
