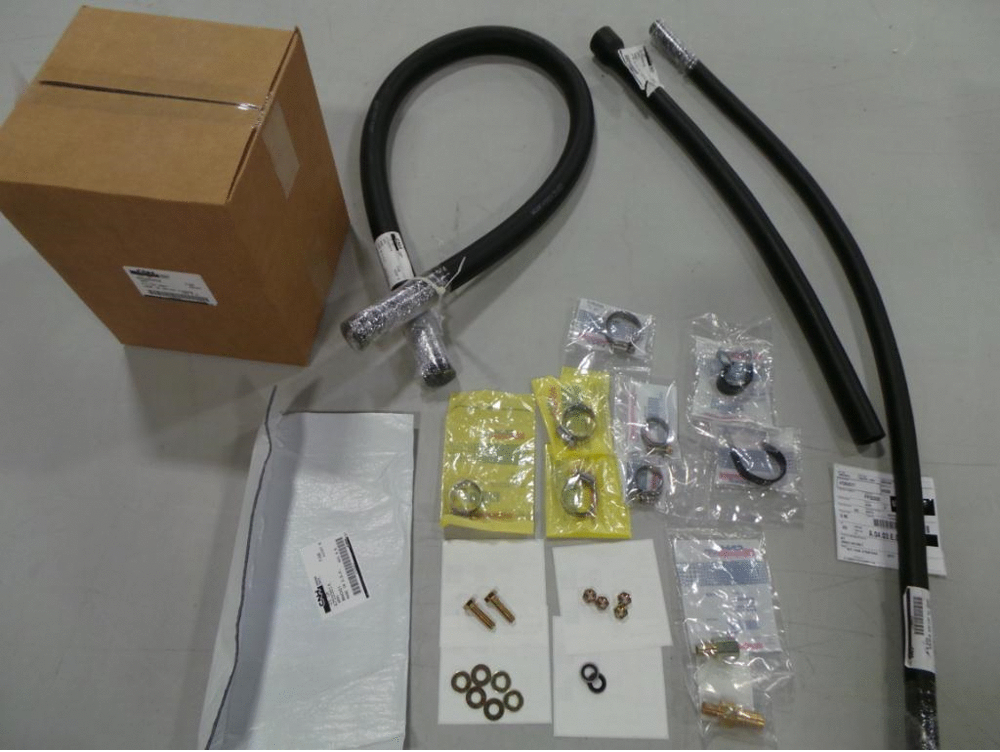

Запчасти Case IH STEIGER 450 (88.090.10) - KIT CCV FILTER HP (88) - ACCESSORIES

1

47597342

KIT

Incl 2 - 19

1шт.

2

47670050

INSTRUCTION

1шт.

3

84326459

FILTER ASSY

Remote CCV

1шт.

4

47668016

ADAPTER

1шт.

5

84326458

CHECK VALVE

1шт.

6

47592672

HOSE

CCV Filter to Air Intake HP

1шт.

7

86639000

CLAMP,23.8mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

8

47592677

HOSE

CCV Filter to Oil Pan HP

1шт.

9

47592674

HOSE

Engine to CCV Filter HP

1шт.

10

47593814

BRACKET

1шт.

11

87010657

CLAMP,34.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

12

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

#10 W/Liner

2шт.

13

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

#16 W/Liner

2шт.

14

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

#20 W/Liner

1шт.

15

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

#12 W/Liner

1шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

17

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

18

825-1408

NUT,M8, Cl 8

4шт.

19

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.
