Запчасти Case IH STEIGER 450 (88.090.03) - DIA KIT, ADDITIONAL PRODUCTS - INSTRUCTIONAL SEAT KIT - CLOTH (88) - ACCESSORIES

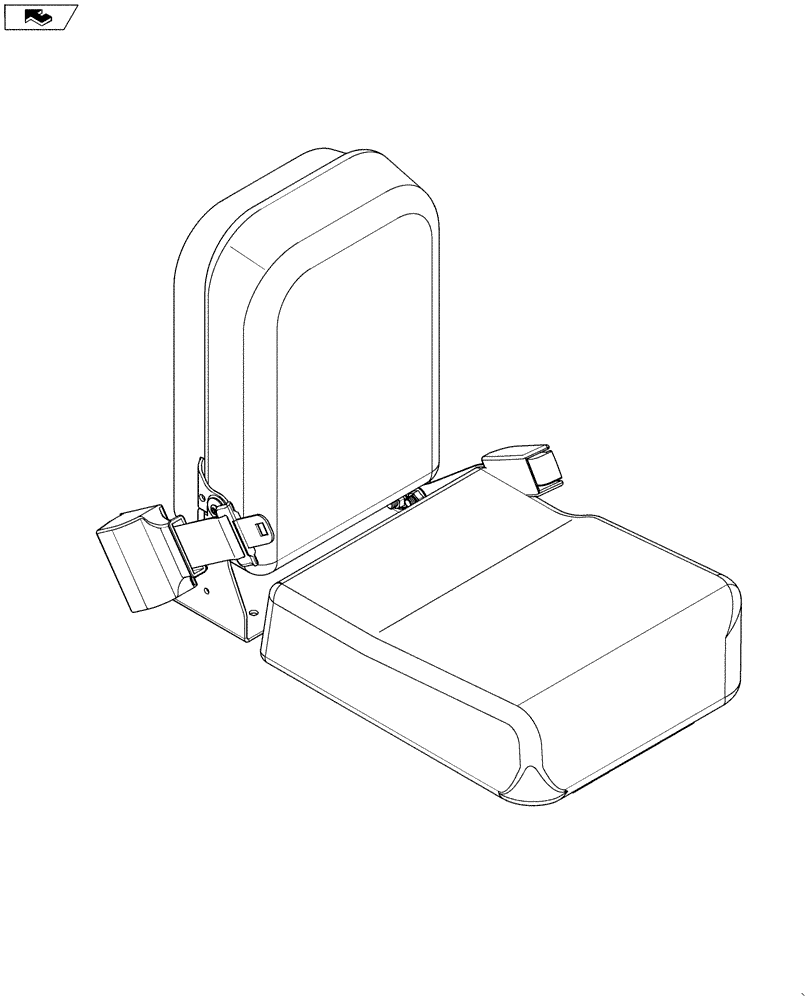

Схема запчастей Case IH STEIGER 450 - (88.090.03) - DIA KIT, ADDITIONAL PRODUCTS - INSTRUCTIONAL SEAT KIT - CLOTH (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

1

84313028

KIT

DIA Kit - INSTRUCTIONAL SEAT CIH - Incl 2 - 16

1шт.

2

84313029

INSTRUCTION

INSTALLATION

1шт.

3

249707A2

BRACKET

INSTRUCTIONAL SEAT

1шт.

4

87484465

SEAT CUSHION

REAR CUSHION

1шт.

5

406682A1

FASTENER

VELCRO

2шт.

6

281926A2

SAFETY BELT

INSTRUCTIONAL SEAT

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

8

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

9

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

10

87484467

SEAT CUSHION

INSTRUCTIONAL SEAT

1шт.

11

365674A1

HINGE

INSTRUCTIONAL SEAT

1шт.

12

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

13

906051R1

HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9

2шт.

14

369635A2

HOLDER

INSERT CUP HOLDER

1шт.

15

394828A1

INSERT

INSERT, INSTRUCTIONAL SEAT

1шт.

16

410704A1

WARNING DECAL

1шт.

Выбрано товаров: 16
