Запчасти Case IH STEIGER 450 (88.039.03) - DIA KIT, ADDITIONAL PRODUCTS - FRONT CASTING KIT (RC) (88) - ACCESSORIES

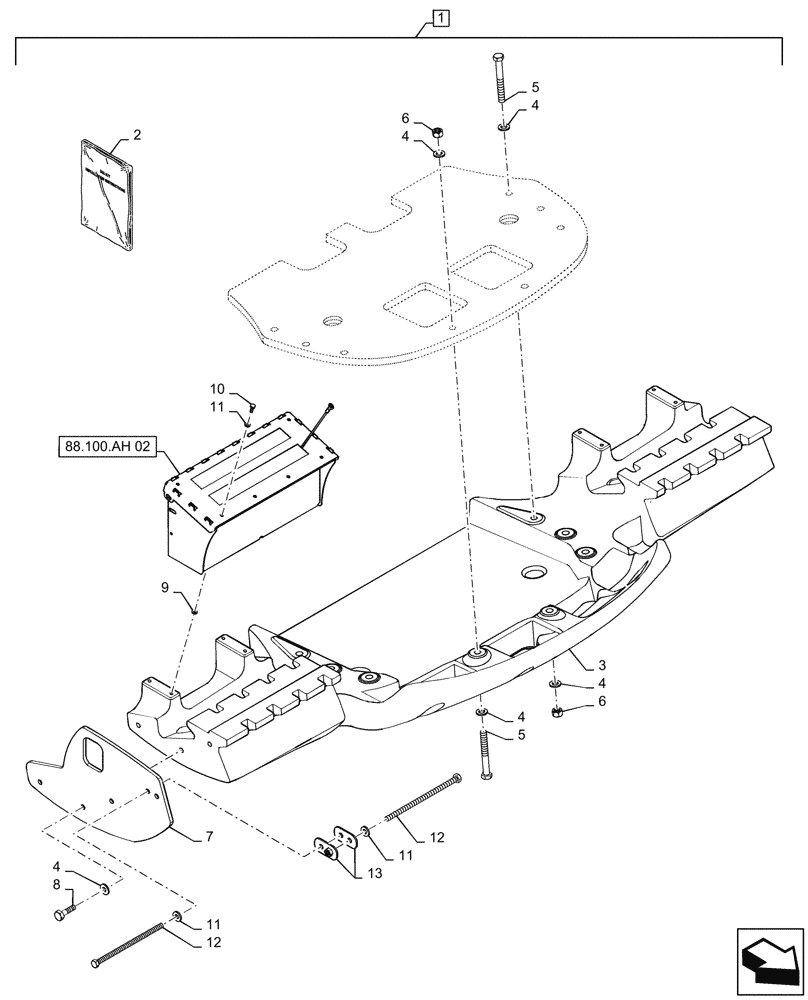

Схема запчастей Case IH STEIGER 450 - (88.039.03) - DIA KIT, ADDITIONAL PRODUCTS - FRONT CASTING KIT (RC) (88) - ACCESSORIES
88.100.ah 02
4
5
13
6
4
8
9
5
4
2
1
11
7
12
4
11
10
12
3
6
4
11

Артикул

Название

Примечание

Количество

1

84316977

KIT

DIA Kit - FRONT BALLAST - Incl 2 - 13

1шт.

2

84317037

INSTRUCTION

INSTALLATION

1шт.

3

84206444

BALLAST

FRONT - MACH

1шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22шт.

5

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

6

829-1420

NUT,M20, Cl 10

8шт.

7

84206433

MOUNT

BALLAST SIDE PLATE

2шт.

8

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

11

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

12

627-16320

BOLT,Hex, M16 x 2 x 320mm, Cl 10.9, Full Thd

4шт.

13

229483A2

RETAINER

ASSY, FRONT WEIGHT

4шт.

Выбрано товаров: 13
