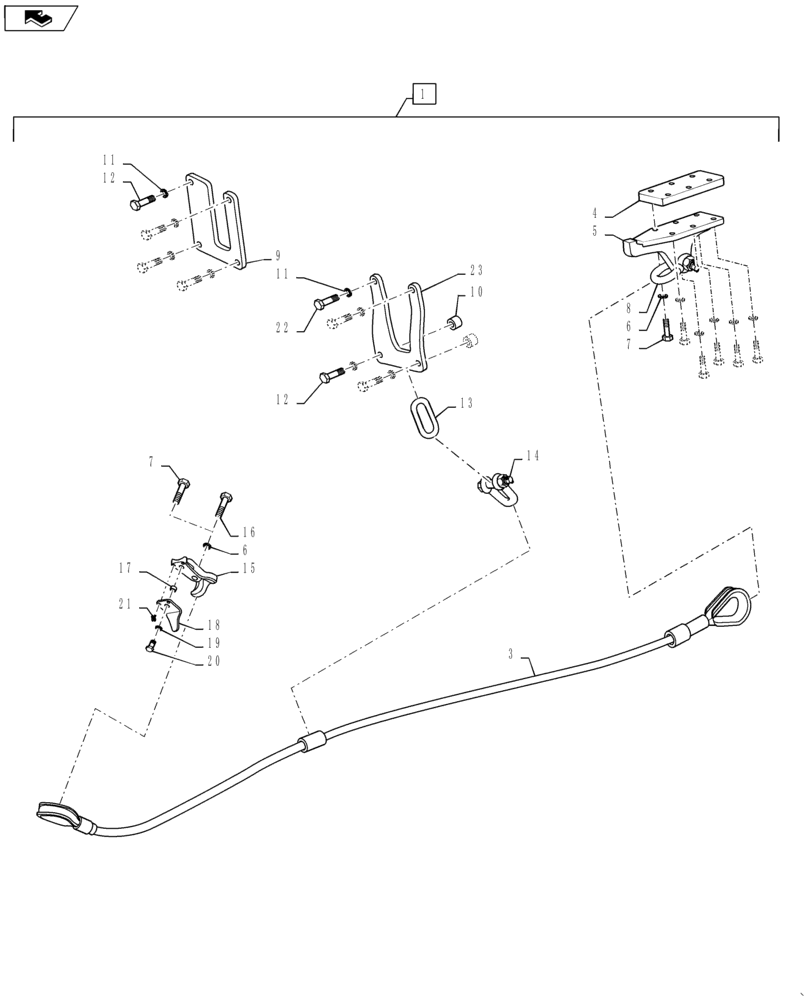

Запчасти Case IH STEIGER 450 (88.037.05) - DIA KIT, ADDITIONAL PRODUCTS - FRONT TOW CABLE KIT (88) - ACCESSORIES

1

84145979

KIT

DIA Kit - Front Tow Hook - Incl 2 - 23

1шт.

2

84551666

INSTRUCTION

Installation

1шт.

3

379523A1

CABLE ASSY.,31.75mm OD x 4750mm L

1шт.

4

87548081

MOUNTING PLATE

Tow Cable Mount

1шт.

5

87548080

MOUNTING PLATE

Tow Cable

7шт.

6

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

7шт.

7

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

1шт.

8

87539843

SHACKLE

Anchor

1шт.

9

84593538

MOUNT

Tow Cable - Center

2шт.

10

409751A1

SPACER,21.5mm ID x 50mm OD x 40mm Thk

MS20 x 40mm

4шт.

11

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

12

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

1шт.

13

409753A1

LINK,196.85mm L

1 inch

1шт.

14

369838A1

SHACKLE

Tow Cable

1шт.

15

84194283

MOUNT

Front Tow Cable

1шт.

16

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

1шт.

17

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

18

84194615

LATCH HOOK

1шт.

19

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

21

19-1041

LOCK PIN,7/16" x 2"

2шт.

22

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

1шт.

23

84335072

MOUNT

Front Axle

1шт.
