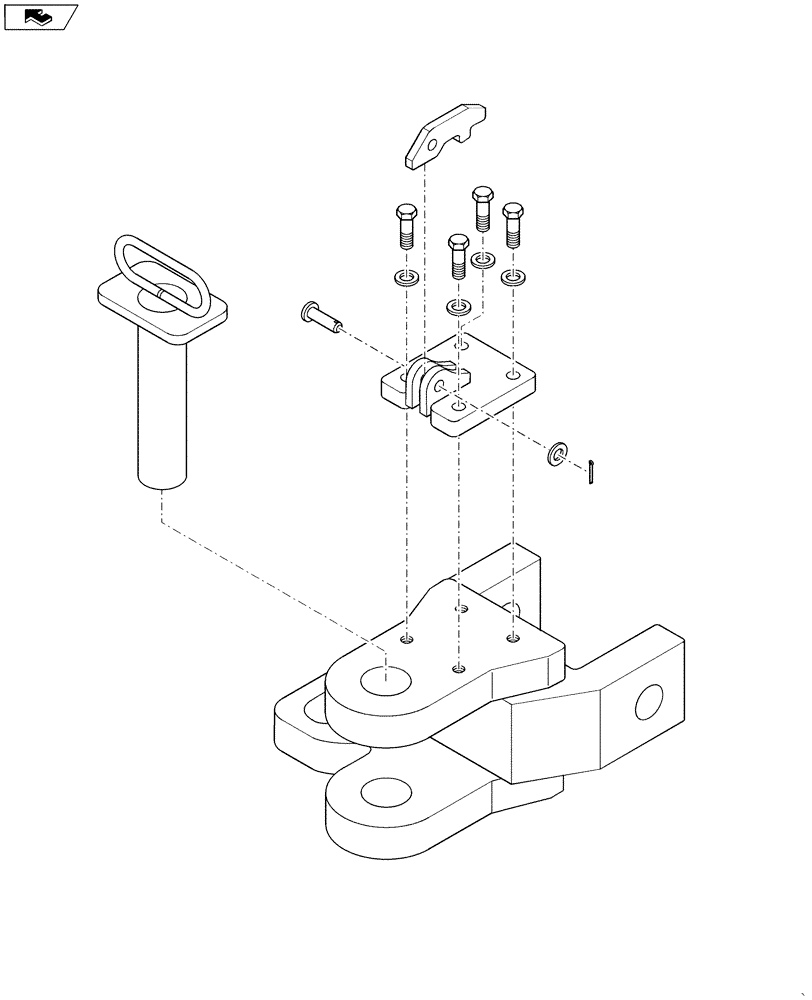

Запчасти Case IH STEIGER 450 (88.035.12) - DIA KIT, ADDITIONAL PRODUCTS - DRAWBAR ASSY, ADAPTOR - STEIGER 450 (88) - ACCESSORIES

1

84344685

KIT

DIA Kit, Drawbar Assy, Adaptor - Incl 2 - 10

1шт.

2

84350709

INSTRUCTION

Installation

1шт.

3

84362057

ADAPTER

Adaptor

1шт.

4

84344690

LATCH

1шт.

5

359522A1

PIN

Hitch Pin Weldment

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

7

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

8

359513A1

LEVER

Hammerstrap

1шт.

9

527-204

CLEVIS PIN,M12 x 43

1шт.

10

733-3220

COTTER PIN,M3.2 x 20

1шт.
