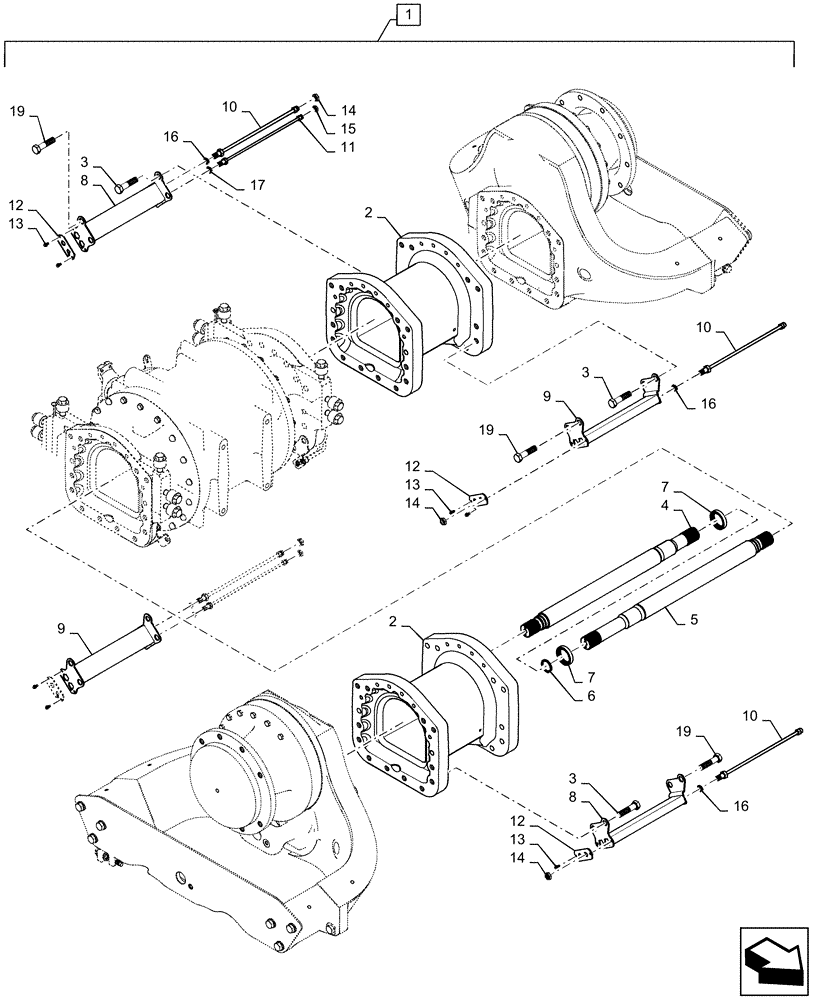

Запчасти Case IH STEIGER 450 (88.023.02) - DIA KIT, ADDITIONAL PRODUCTS - 120 IN TREAD SPACER KIT (88) - ACCESSORIES

1

W0

ORDER WHOLEGOODS

Kit, 120 Inch Tread Setting - P/N 47357687 - Incl 2 - 18

1шт.

2

47448318

SPACER

120 Inch Tread W/Dowels

4шт.

3

828-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

48шт.

4

84467445

SHAFT,1078mm L

120 IN - RH

2шт.

5

84467446

SHAFT,1166mm L

120 IN - LH

2шт.

6

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.55 x 56.7 CL 5 (2-228)

4шт.

7

84466800

SEAL

Oil, Axle Beam - Up Box

4шт.

8

47478741

HYD TUBE

RH

4шт.

9

47478746

HYD TUBE

LH

8шт.

10

47477376

HYD TUBE

4шт.

11

47477395

HYD TUBE

8шт.

12

47478757

BRACKET

16шт.

13

87752074

SCREW,HWH, M8 x 1.25 x 16mm

M8 x 16, Tapping, THD Roll Flg Head

8шт.

14

701-903

NUT,13/16" - 16

4шт.

15

87010704

BHD LOCK NUT,11/16"-16

4шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

16шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

18

47357688

INSTRUCTION

Installation, Not Illustrated

1шт.

19

47418288

BOLT,Hex, M24 x 3 x 80mm, Class 10.9

24шт.
