Запчасти Case IH STEIGER 450 (55.510.AB[03]) - HARNESS - MAIN CAB - NORTH AMERICA (55) - ELECTRICAL SYSTEMS

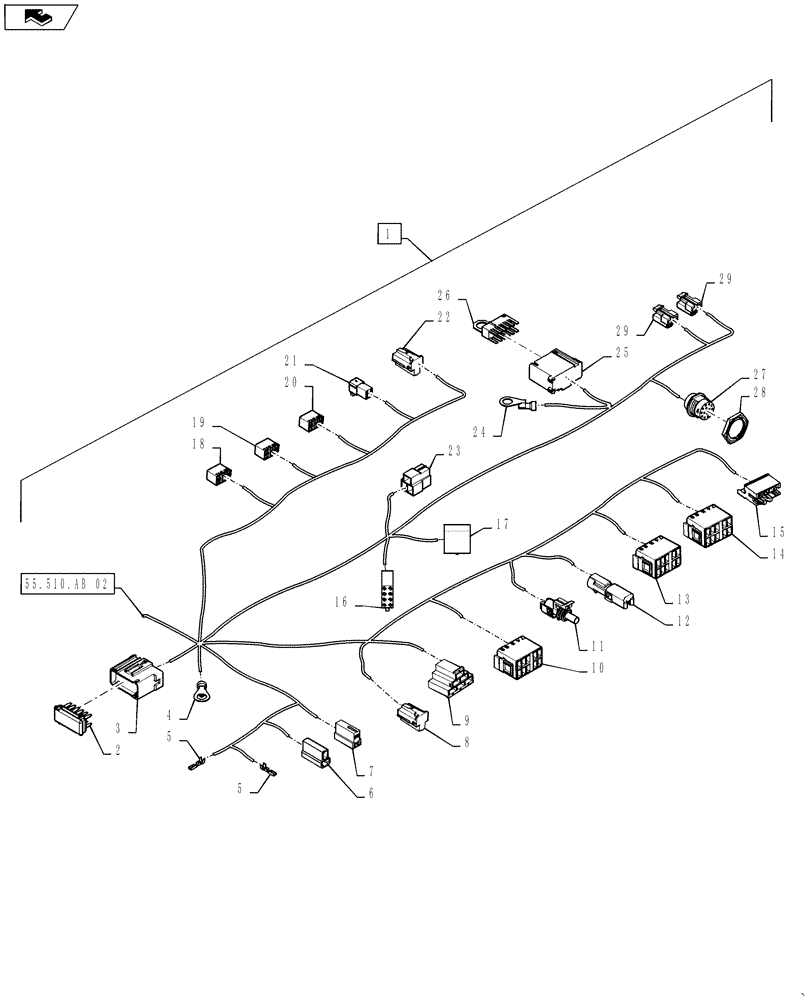

Схема запчастей Case IH STEIGER 450 - (55.510.AB[03]) - HARNESS - MAIN CAB - NORTH AMERICA (55) - ELECTRICAL SYSTEMS
5
7
28
19
27
29
15
26
16
4
9
20
29
12
8
17
14
24
13
25
11
10
3
55.510.ab 02
6
23
2
22
1
5
18
21
home

Артикул

Название

Примечание

Количество

1

84311775

HARNESS

Main Cab, North America, Inc. 2 - 29 & Fig.'s 55.510.AB(01), 55.510.AB(02)

1шт.

2

87352747

CAP

Display Lighting Splice Pack, SPL866

1шт.

3

87352746

ELEC CONNECTOR

Display Lighting Splice Pack, SPL866

1шт.

4

PL

PROCURE LOCALLY

Ring Terminal, M8 Stud, Radio Ground

1шт.

5

87679990

TERMINAL,Tin, 0.75 - 2.50mm

Dome Lamp A & B, C674, C675

2шт.

6

314908A1

CONNECTOR, ELEC

Dome Lamp Switch C & D, C676

1шт.

7

3227856R1

CONNECTION

Console Switches, Interior Lamp, C685M

1шт.

8

84177907

ELEC CONNECTOR

Cigar Lighter 5, C047

1шт.

9

475083C1

CONNECTOR, ELEC

Rotory Work Light Switch, C643F

1шт.

10

87426886

CONNECTOR, ELEC

Headlight Switch, Orange, C652

1шт.

11

245480C1

ELEC CONNECTOR,1 Pin

HID Center Cutout Switch, Enable, C654

1шт.

12

245481C1

CONNECTION,ELECTRIC

HID Center Cutout Switch, Ground, C660F

1шт.

13

87426889

HYD CONNECTOR

Ag Roading Switch, Green, C656M

1шт.

14

87426881

HYD CONNECTOR

Front Lower Wiper Switch, White, C658M

1шт.

15

84144195

WIRE CONNECTOR

Power Mirror Switch, C927

1шт.

16

292495A1

ELEC CONNECTOR

Radio - A, Radio AM/FM, C097

1шт.

17

292494A1

ELEC CONNECTOR

Radio - B, Radio AM/FM, C098

1шт.

18

87426882

CONNECTOR, ELEC

Beacon Switch, Red, C646M

1шт.

19

87426892

CONNECTOR, ELEC

EHR/EDC Switch, Blue, C655

1шт.

20

87426885

CONNECTOR, ELEC

Rear Wiper Switch, Black, C657M

1шт.

21

227393A1

CONNECTOR, ELEC

To Intermittant Wiper Switch, C651F

1шт.

22

84491253

WIRE CONNECTOR

ATC HVAC Controls, C079M

1шт.

23

225259C1

CONNECTOR, ELEC

Map Lamp, C679

1шт.

24

PL

PROCURE LOCALLY

Ring Terminal, M10 Stud, Cab Roof A-Post Ground

1шт.

25

87352749

WIRE CONNECTOR

Cab Roof A-Post, J0_ROOF1

1шт.

26

87352750

CAP

Cab Roof A-Post, J0_ROOF1

1шт.

27

84178657

ELEC CONNECTOR

Antenna Sub Roof Bulkhead, C014F

1шт.

28

87696194

THIN NUT

Panel Single Hole Mounting Bayonet Coupling, C013F

1шт.

29

298079A1

CONNECTOR, ELEC

To Right & Left Front Speakers, C619F, C618F

2шт.

Выбрано товаров: 29
