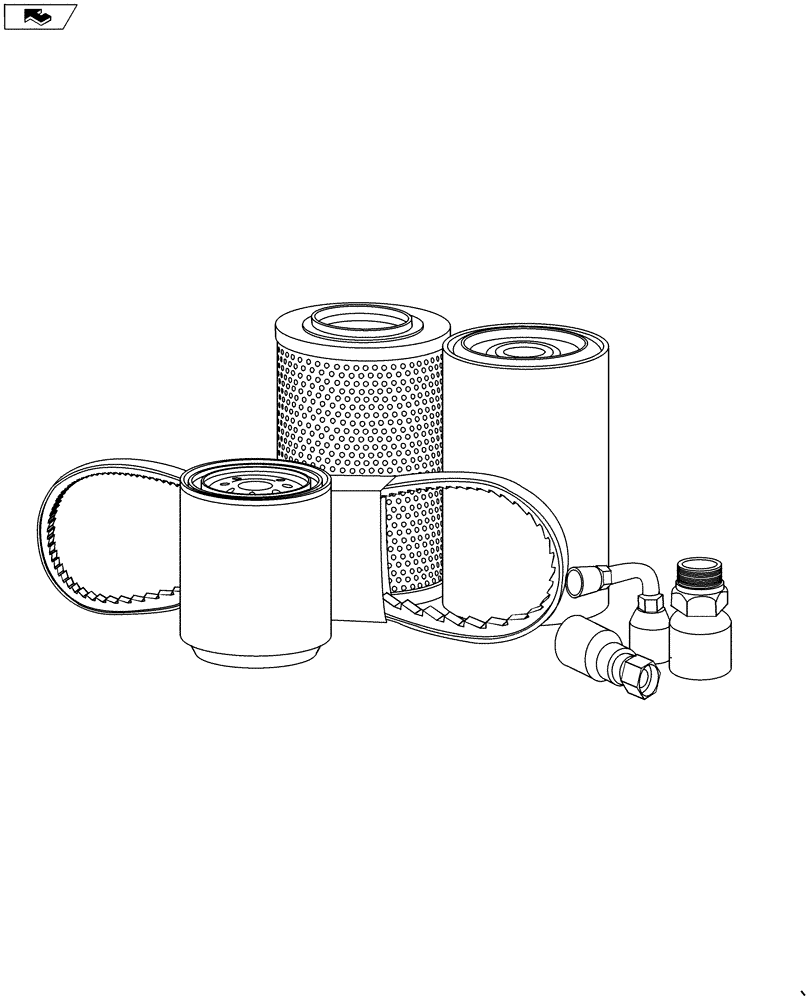

Запчасти Case IH STEIGER 450 (05.100.03[03]) - FILTERS & CAPACITIES, ROWTRAC 450 (05) - SERVICE & MAINTENANCE

*

REF

INSTRUCTION

Antifreeze, Engine Coolant Drain And Flush, Case IH ES COMPLEAT, 15.2 Gal (57.6 L)

1шт.

1

5801592277

FILTER

Engine Oil Filter

1шт.

*

REF

INSTRUCTION

Oil, Engine Crankcase, Case IH Akcela Unitek CJ-4, 7.2 Gal (27.25 L)

1шт.

2

84310006

AIR FILTER

Primary, Engine

1шт.

3

87356547

AIR FILTER

Secondary

2шт.

4

504209107

AIR FILTER

Engine Breather

1шт.

5

87684088

CAB FILTER,CAB

Cab

1шт.

6

386751A1

CAB FILTER

Cab Recirculated Air

1шт.

7

283094A1

FILTER

Cab Recirculation

1шт.

8

84211797

AIR FILTER

HVAC Intake, Cab Roof

1шт.

9

84196445

HYDRAULIC OIL FILTER

Spin On, Standard Flow

1шт.

10

84196445

HYDRAULIC OIL FILTER

Spin On, High Flow

2шт.

11

87408715

FILTER STRAINER

Hydraulic Tank Screen

1шт.

12

87714123

FILTER

Main Aux Valve, 100-150 Micron

1шт.

13

1957867C1

FILTER SCREEN

Hydraulic Pump, High Flow

1шт.

*

REF

INSTRUCTION

Hydraulic Oil, Case IH Akcela NEXPLORE, 64.5 Gal (244 L)

1шт.

If Three Point HItch Equipped, Add 5 Gal (19 L)

1шт.

*

REF

INSTRUCTION

Idler Hub (Each), SAE 50W TO 4 Oil, 12.5 oz (370 ML)

1шт.

*

REF

INSTRUCTION

Roller Hub (Each), SAE 30W Engine Oil, 7.6 oz (225 ML)

1шт.

14

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Transmission Lube Filter

1шт.

15

427524A1

BREATHER

Transmission

1шт.

16

87362229

FILTER SCREEN

Powershift Regulator Valve

1шт.

17

428677A1

FILTER

Conical, Powershift Regulator Valve

1шт.

*

REF

INSTRUCTION

Transmission Oil, Case IH Akcela HY-TRAN Ultra, 16.6 Gal (63 L)

1шт.

18

84303715

FUEL FILTER

w/Water Separator, Frame Mounted

1шт.

19

84480523

FUEL FILTER

Engine Mounted

1шт.

20

84247272

FILTER,In-Line

DENOX2 Supply Inlet

1шт.

21

84254852

FILTER

DENOX2 Module, Incl Element, O-Ring, and Drain Screw

1шт.

22

84367903

FILTER

DEF Inline

1шт.

*

REF

INSTRUCTION

Grease, Chassis Lube, Akcela Multi-Purpose 251H EP, As Required

1шт.
