Запчасти Case IH STEIGER 450 (41.206.AG[03]) - STEERING ASSY - EMERGENCY STEERING WIRING LAYOUT (41) - STEERING

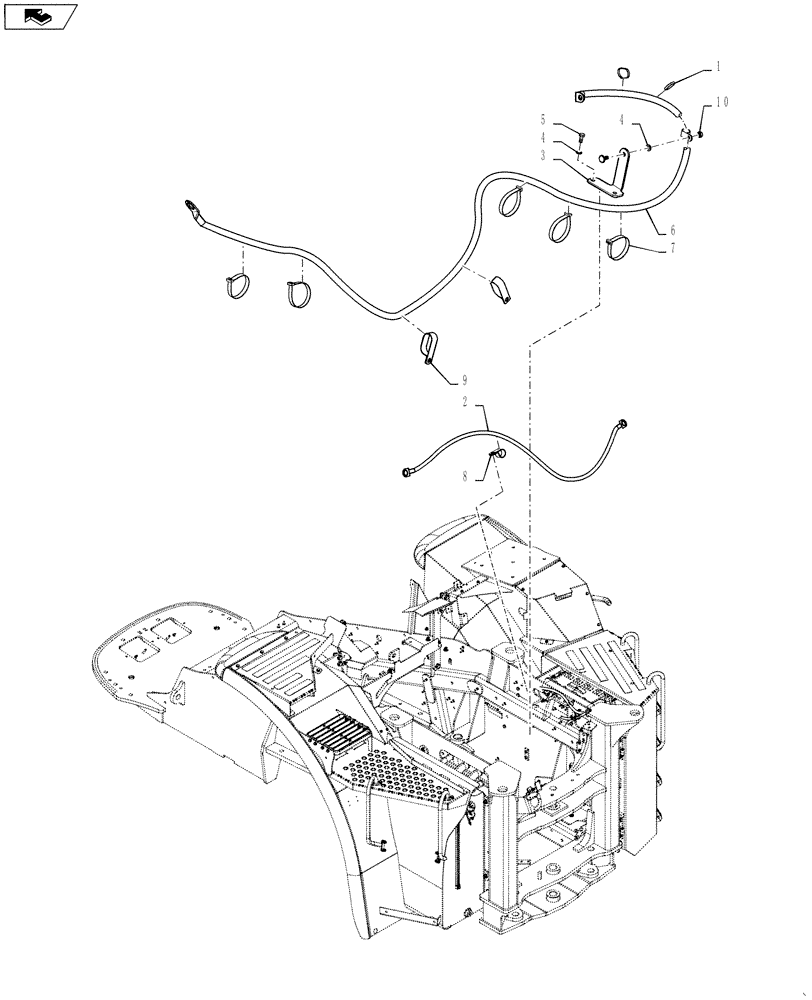

Схема запчастей Case IH STEIGER 450 - (41.206.AG[03]) - STEERING ASSY - EMERGENCY STEERING WIRING LAYOUT (41) - STEERING
6
1
7
8
10
4
7
4
9
home
5
3
9
7
2

Артикул

Название

Примечание

Количество

1

435437A1

CABLE TIE,3/16" x 7 1/4"

2шт.

2

84414173

ELECTRIC CABLE,900mm L

Steering Pump Grnd. RC

1шт.

3

84410293

BRACKET

Steering Pump Cable

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

84392562

ELECTRIC CABLE,2950mm L

Steering Pump, 9L, B+ - Steiger 350

1шт.

6

84407338

ELECTRIC CABLE,1900mm L

Steering Pump, 13L, B+ - Steiger 400-450

1шт.

7

84266050

CABLE TIE,384mm L, Polyamide

Strap, Cable Tie

5шт.

8

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

9

L111928

CLAMP

Double Clamp

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

Выбрано товаров: 11
