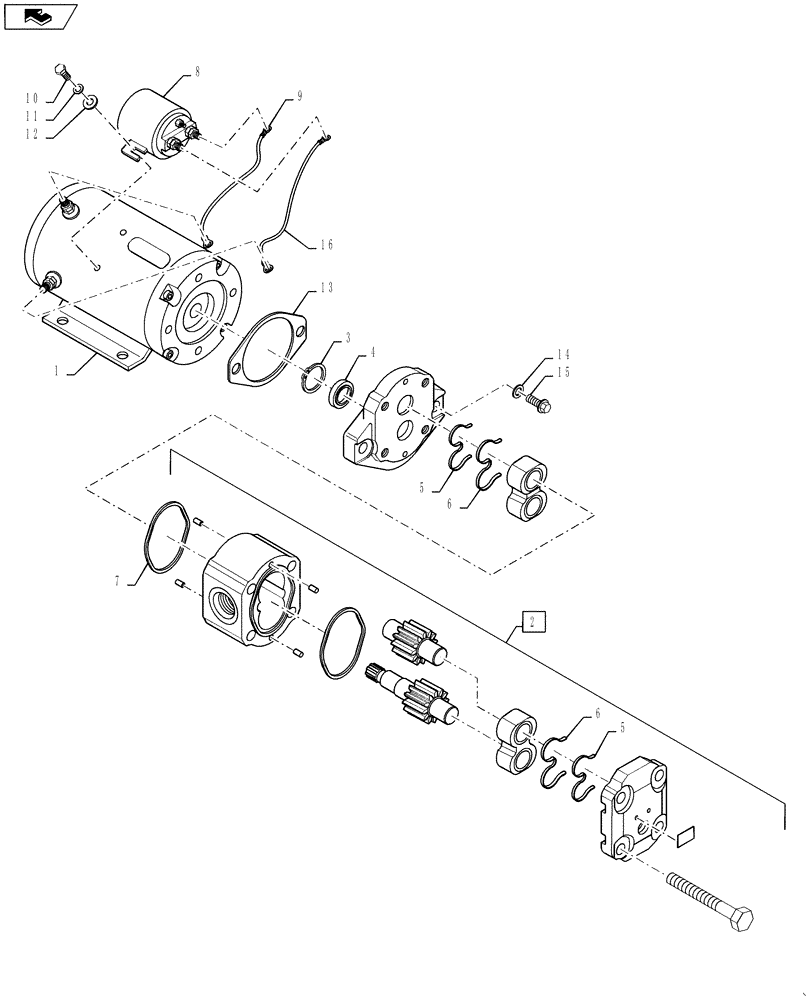

Запчасти Case IH STEIGER 450 (41.206.AG[02]) - STEERING ASSY - PUMP - EMERGENCY STEERING (41) - STEERING

1

87581481

ELECTRIC MOTOR

DC

1шт.

2

8605158

PUMP, HYDRAULIC

Incl 3 - 7

1шт.

2

8605158R

REMAN-HYD PUMP

Reman PN For 8605158

1шт.

8605158C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Retaining - Incl in 2 and 17

1шт.

4

NSS

NOT SOLD SEPARAT

Seal - Incl in 2 and 17

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup - Incl in 2 and 17

2шт.

6

NSS

NOT SOLD SEPARAT

Seal - Incl in 2 and 17

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring - Incl in 2 and 17

2шт.

8

NSS

NOT SOLD SEPARAT

Switch - Incl in 18

1шт.

9

NSS

NOT SOLD SEPARAT

Cable - Incl in 18

1шт.

10

NSS

NOT SOLD SEPARAT

Screw - Incl in 18

2шт.

11

NSS

NOT SOLD SEPARAT

Washer, Lock - Incl in 18

2шт.

12

NSS

NOT SOLD SEPARAT

Washer - Incl in 18

2шт.

13

NSS

NOT SOLD SEPARAT

Gasket, Mounting - Incl in 19

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Lock - Incl in 19

2шт.

15

NSS

NOT SOLD SEPARAT

Screw - Incl in 19

2шт.

16

8605161

WIRE

Primary

1шт.

17

8605162

SEAL KIT

Inc. items 3 thru 7

1шт.

18

8605159

KIT

Starting Switch, Inc. items 8 thru 12

1шт.

19

8605160

KIT

Mounting, Inc. items 13 thru 16

1шт.
