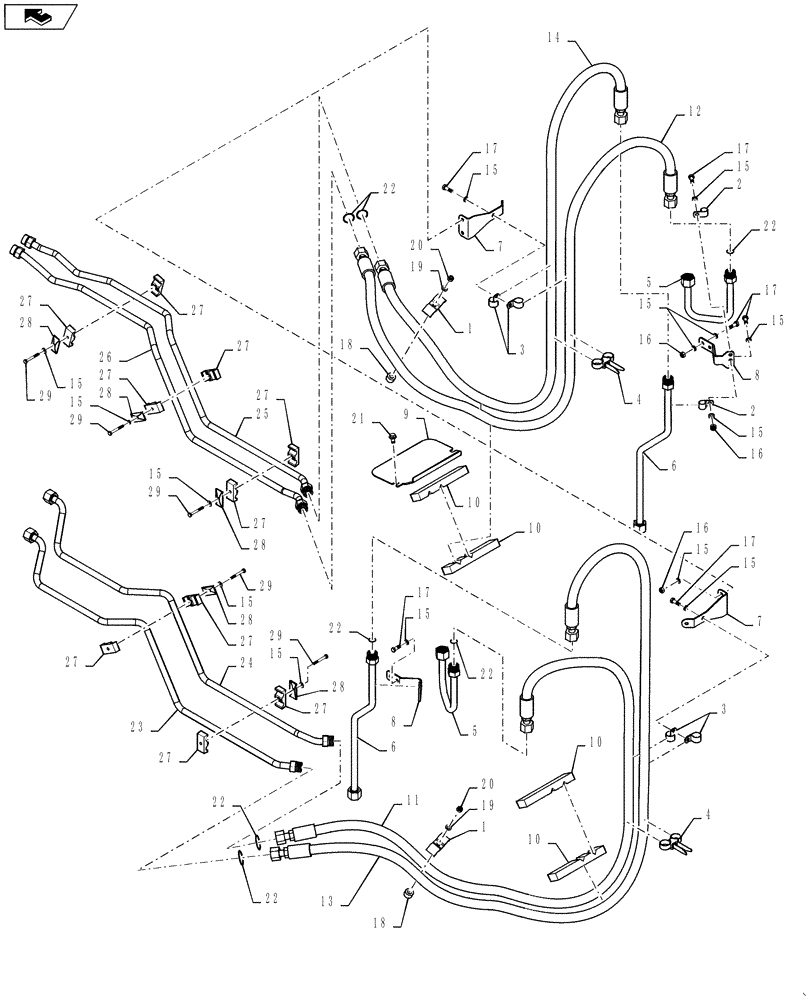

Запчасти Case IH STEIGER 450 (35.300.BC[01]) - OIL COOLER LINE LAYOUT (35) - HYDRAULIC SYSTEMS

1

R15257

CLAMP

Hose

4шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Insulated, 19mm, 3/8 IN Bolt

4шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

Insulated, 25.4mm, 3/8 IN Bolt

4шт.

4

327144A1

STRAP,328mm L

Dual Tie

2шт.

5

84359536

TUBE

Cooler Supply, RC

2шт.

6

84359539

TUBE

Cooler Return, RC

2шт.

7

84204613

BRACKET

Cooler Hose Support

2шт.

8

84359535

BRACKET, SUPPORTING

Cooler Tube Support

2шт.

9

84216361

BRACKET, SUPPORTING

Cooler Hose Seal support

1шт.

10

84216360

SEAL

Foam, Cooler Plumbing

4шт.

11

84359543

HOSE ASSY.,19.05mm ID x 2642mm L, SAE 100R1

Cooler Supply, RC

1шт.

12

84359543

HOSE ASSY.,19.05mm ID x 2642mm L, SAE 100R1

Cooler Supply, RC

1шт.

13

84359544

HOSE ASSY.,19.05mm ID x 2502mm L, SAE 100R1

Cooler Return, RC

1шт.

14

84359544

HOSE ASSY.,19.05mm ID x 2502mm L, SAE 100R1

Cooler Return, RC

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

29шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

12шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

18

372947A1

SPACER

Bracket

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

21

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

10шт.

23

84180140

HYD TUBE

Charge Pressure, Cooler to Filter - Steiger 350 - 450 Wheeld

1шт.

23

84427964

TUBE

Charge Pressure, Cooler to Filter - Steiger 350 - 500 Row Track

1шт.

24

84180142

HYD TUBE

Charge Pressure, Pump to Cooler - Steiger 350 - 450 Wheeled

1шт.

24

84427965

TUBE

Charge Pressure, Pump to Cooler - Steiger 350 - 500 Row Track

1шт.

25

84247002

HYD TUBE,19.05 mm OD

Cooler to Transmission - Steiger 350 - 450 Wheeled

1шт.

25

84427981

TUBE

Cooler to Transmission - Steiger 350 - 500 Row Track

1шт.

26

84179153

HYD TUBE,19.05 mm OD

Transmission to Cooler - Steiger 350 - 450 Wheeled

1шт.

26

84427980

TUBE

Transmission to Cooler - Steiger 350 - 500 Row Track

1шт.

27

50-2551T1

CLAMP

Tube

10шт.

28

50-2533T1

PLATE

Cover

5шт.

29

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

5шт.
