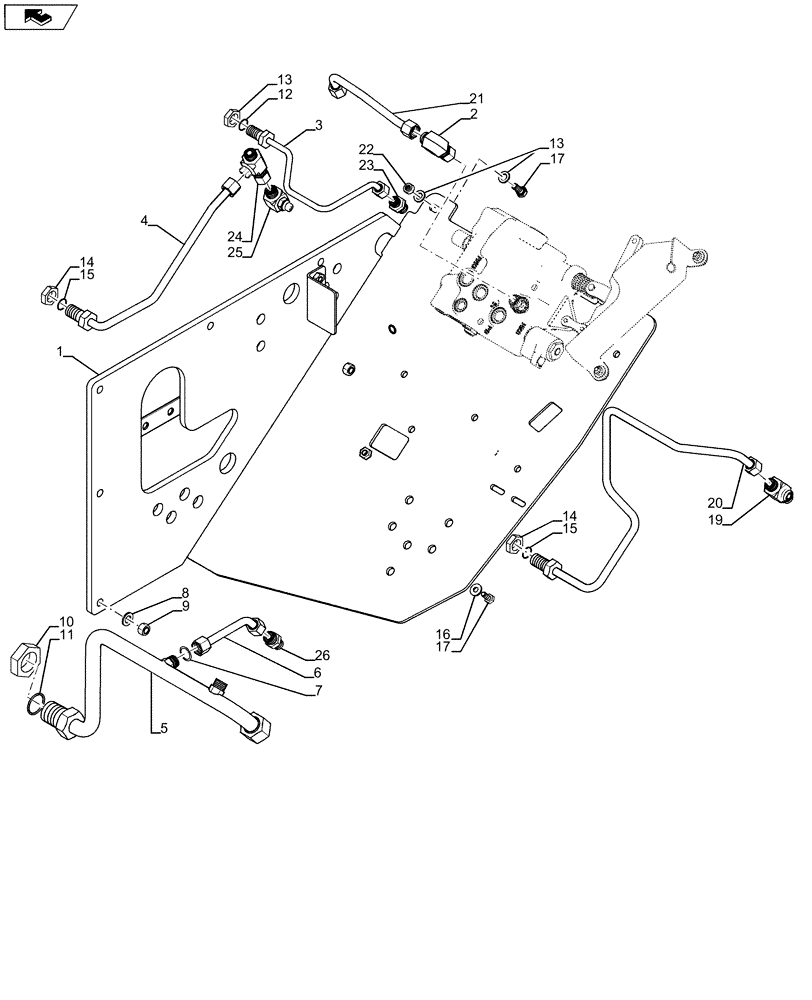

Запчасти Case IH STEIGER 450 (33.110.BJ[02]) - PARKING BRAKE - HYDR LINES - NORTH AMERICA (33) - BRAKES & CONTROLS

1

84212759

SUPPORT

Hydraulic Assembly

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

3

84212475

TUBE

Pilot Pressure

1шт.

4

84513984

TUBE

Tank Return

1шт.

5

84212490

TUBE

Pump Pressure

1шт.

6

84212473

TUBE

Tow Pressure

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

7шт.

9

829-1412

NUT,M12, Cl 10.9

7шт.

10

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

701-903

NUT,13/16" - 16

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

18

84513974

TUBE

Tank Return

1шт.

19

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

20

84212500

TUBE

Park Brake Pressure

1шт.

21

84513974

TUBE

Tank Return

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

23

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

24

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

25

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.
