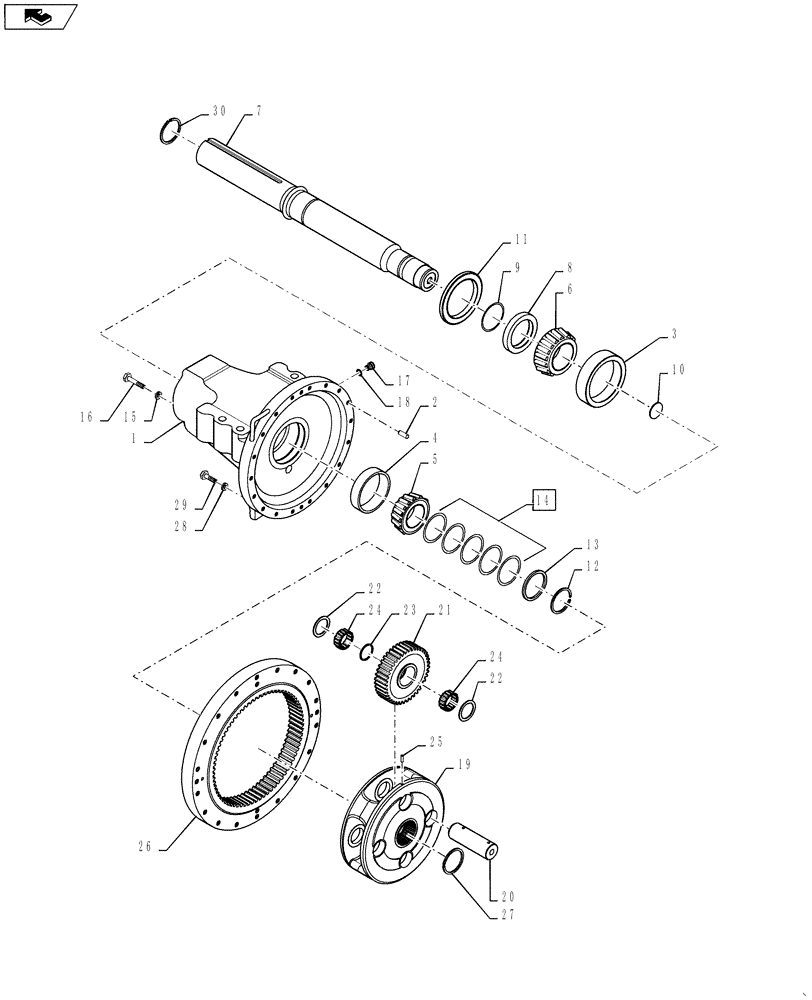

Запчасти Case IH STEIGER 450 (25.108.02) - AXLE - ASSY - 425 SERIES - FINAL DRIVE (25) - FRONT AXLE SYSTEM

1

87363036

HOUSING

Assy., Final Drive - 115mm Axle - Incl 2 - 4

1шт.

1

84120549

BEARING CARRIER

Assy., Final Drive - 127mm Axle - Incl 2 - 4

1шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

3

84182188

BEARING ASSY

Bearing Assy. - 127mm Axle - Incl 6

1шт.

4

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

1шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

1шт.

6

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

6

84182188

BEARING ASSY

Bearing Assy. - 127mm Axle - Incl in 3

1шт.

7

84188297

4WD AXLE ASSY

Axle, 127mm Bar, Incl 8 - 10

2шт.

7

84179857

4WD AXLE ASSY

Axle, 127mm Flange

2шт.

8

87593684

BUSHING

Outboard

1шт.

8

84173880

BUSHING,127.4mm ID x 210mm OD x 26mm L

127mm Axle

1шт.

9

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

127mm Axle

1шт.

10

1981270C1

INSERT

Axle Wear

1шт.

11

84600284

OIL SEAL

127mm Axle

1шт.

12

243856A1

RING, SNAP

Axle Retaining

1шт.

13

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

Thrust

1шт.

14

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

14

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

14

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

14

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

14

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

15

95-31038

WASHER,5/16"

4шт.

16

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

17

221578A1

PLUG,M18 x 1.5 ORB

Incl 18

1шт.

17

86598046

PLUG,M18 x 1.5 ORB

127mm Axle Housing - Incl 17

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

For P/N 86598046 - Incl in 17

1шт.

19

388370A1

PINION CARRIER

Planetary

1шт.

20

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planet Gear

4шт.

21

310694A2

PLANETARY GEAR,29T

29T

4шт.

22

385900A1

THRUST WASHER

Planet Gear Thrust

8шт.

23

310728A2

RING

Needle Spacer

4шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

264шт.

25

838-3826

PIN,M8 x 26, Coiled

4шт.

26

360761A1

GEAR, RING

76T

2шт.

27

101-11350

SNAP RING,#350, Ext

2шт.

28

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

36шт.

29

84233538

BOLT,Hex, M16 x 150mm, Cl 12.9

M16 x 150 12.9 PHC, Suction Tube Side of Axle

18шт.

29

84233539

BOLT,Hex, M16 x 180mm, Cl 12.9

M16 x 180 12.9 PHC, Serial Number Plate Side of Axle

16шт.

29

390873A1

SPECIAL BOLT

M16 x 180 Class 10.9 PHC, Same as 628-16180 W/Loctite 516, Serial Number Plate Side of Axle

3шт.

30

800-11115

SNAP RING,M115, Ext

4шт.
