Запчасти Case IH STEIGER 450 (25.102.11) - AXLE - ASSY - 425 SERIES - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS (25) - FRONT AXLE SYSTEM

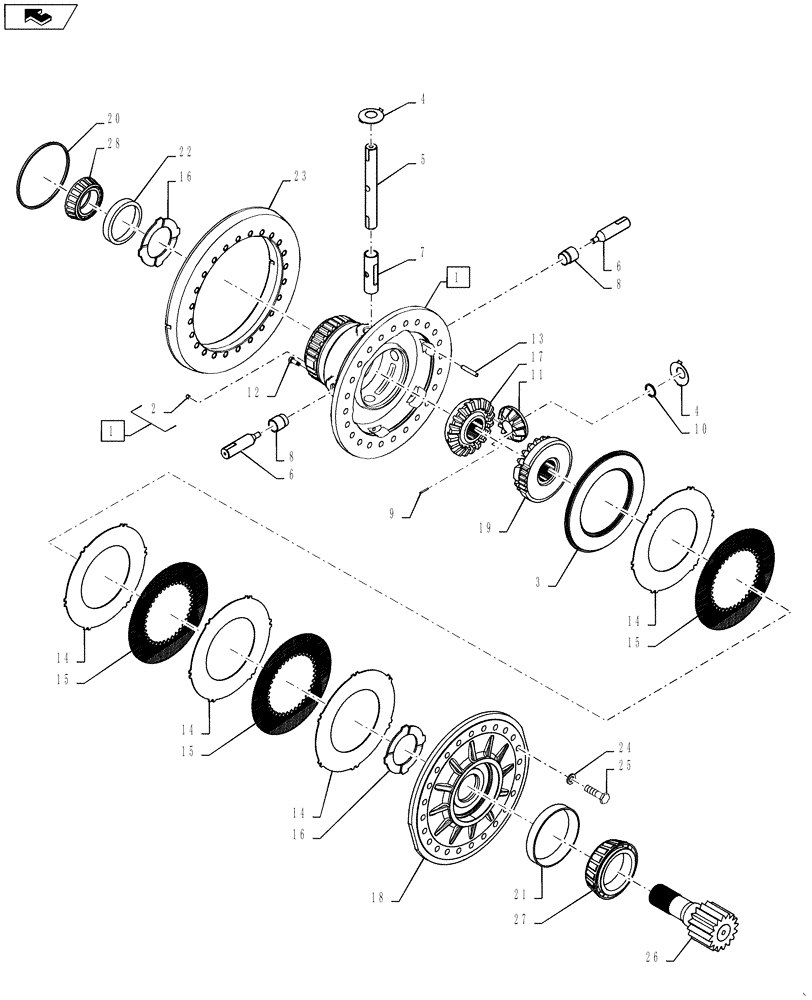

Схема запчастей Case IH STEIGER 450 - (25.102.11) - AXLE - ASSY - 425 SERIES - DIFFERENTIAL, WITH DIFFERENTIAL LOCKS (25) - FRONT AXLE SYSTEM
15
14
28
16
14
17
11
12
22
6
25
7
16
1
1
26
27
6
20
18
8
4
24
15
4
14
3
8
home
9
5
10
21
14
2
13
19
15
23

Артикул

Название

Примечание

Количество

1

84323448

CASE

W/ Diff Lock, Incl 2

1шт.

2

87520607

PLUG

9 mm

3шт.

3

1997422C1

PISTON

Brake

1шт.

4

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Thrust, Differential Pinion

4шт.

5

92907C1

SHAFT

Pinion, Long

1шт.

6

92906C1

SHORT SHAFT

Pinion

2шт.

7

1289349C1

SPACER

Long Pinion

1шт.

8

1289350C1

SPACER

Short Pinion

2шт.

9

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

10

1289348C1

RING

4шт.

11

92905C1

PINION

4шт.

12

1997421C1

BOLT

2шт.

13

137023A1

DOWEL

Pin, Diff Lock Reactor

6шт.

14

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Separator, Diff Lock

4шт.

15

120679C1

PLATE

Friction, Diff Lock

3шт.

16

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

2шт.

17

1259633C3

GEAR

Diff Bevel, 20T

1шт.

18

84323113

COVER

Differential Case, W/ Lock

1шт.

19

1259634C3

PINION

Diff Lock bevel

1шт.

20

148939C1

SEALING RING,OD 200.60 mm

Diff Lock

1шт.

21

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

22

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

23

302259A2

BEVEL GEAR

Pinion Shaft and Gears, Front Axle, (Pinion Shaft Not Shown)

1шт.

23

302260A1

GEAR SET

Pinion Shaft and Gears, Rear Axle, (Not Shown)

1шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

25

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

26

310693A1

SHAFT

Sun Gear, Short

1шт.

27

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

28

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

Выбрано товаров: 29
