Запчасти Case IH STEIGER 450 (25.102.09) - AXLE - ASSY - 425 SERIES - FRONT COVER (25) - FRONT AXLE SYSTEM

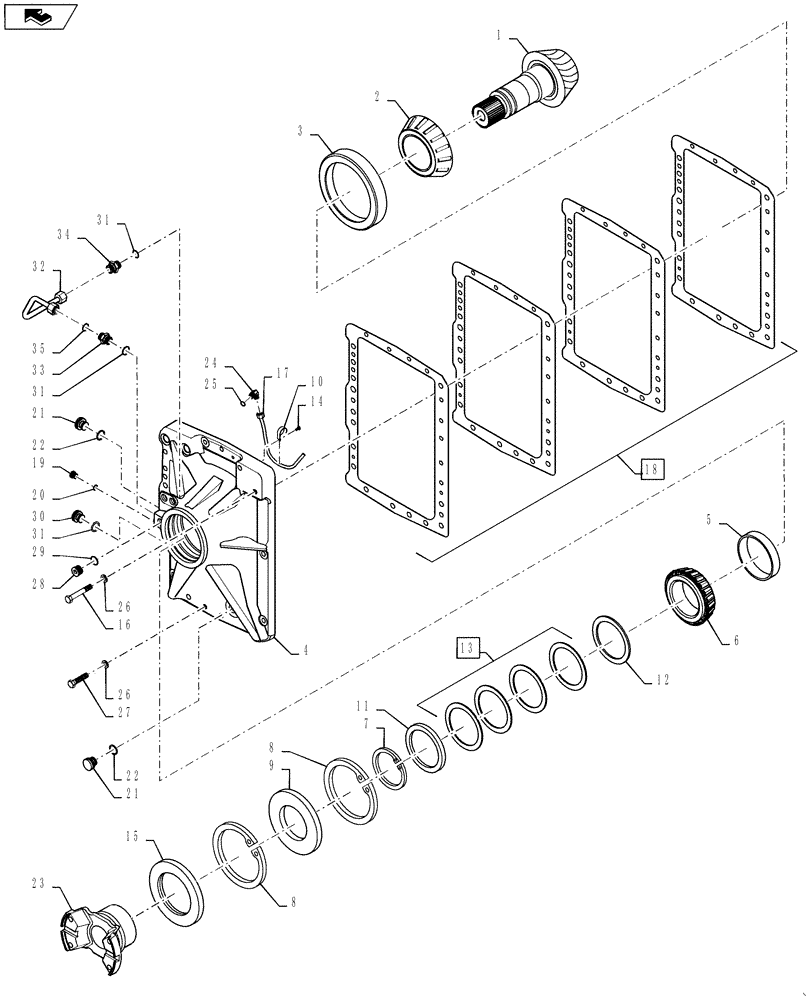

Схема запчастей Case IH STEIGER 450 - (25.102.09) - AXLE - ASSY - 425 SERIES - FRONT COVER (25) - FRONT AXLE SYSTEM
22
8
32
1
29
18
9
28
22
16
27
20
2
17
3
21
6
33
24
26
11
31
10
4
35
31
5
31
34
15
13
25
8
19
12
23
30
14
7
21
home
26

Артикул

Название

Примечание

Количество

1

302259A2

BEVEL GEAR

SET, Pinion Shaft and Gears, Front Axle Cover, (Pinion Gear Not Shown)

1шт.

2

248118A1

TAPERED BEARING,88.9125 mm ID x 52.8625 mm

1шт.

3

248114A1

BEARING, CUP,200.01mm OD x 34.82mm W

1шт.

4

84251899

COVER ASSY

Cover, Front Axle

1шт.

5

191440A1

BEARING CUP,140 mm OD x 28.4734 mm

1шт.

6

67190R91

BEARING ASSY,82.5627 mm ID x 36.6135 mm

1шт.

7

229515A1

RING, SNAP

M4

1шт.

8

100-21550

SNAP RING,5.50", Int, #550

2шт.

9

87432424

OIL SEAL

Pinion, Input Shaft

1шт.

10

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

11

228968A2

SPACER

Thick

1шт.

12

191713A1

SPACER

Thin

1шт.

13

191709A1

SHIM,0.076mm Thk

1шт.

13

191711A1

SHIM,0.101mm Thk

1шт.

13

191712A1

SHIM,0.130mm Thk

1шт.

13

220785A1

SHIM,84mm ID x 110mm OD x 0.5mm Thk

1шт.

14

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

15

284186A1

SEAL,88.9mm ID x 146.15mm OD x 10mm Thk

1шт.

16

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

8шт.

17

234433A1

TUBE

Lubrication

1шт.

18

226492A2

SHIM,0.076mm Thk

1шт.

18

226493A2

SHIM,393mm OD x 0.1mm Thk

1шт.

18

226494A2

SHIM,393mm OD x 0.13mm Thk

1шт.

18

226496A2

SHIM,0.508mm Thk

1шт.

19

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 20

1шт.

20

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

21

221579A1

PLUG,M22 x 1.5 ORB

Incl. 22

2шт.

22

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

23

395209A1

YOKE

8C

1шт.

24

86985636

ELBOW

Orificed, 5/16 x 3/8, Incl 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

22шт.

27

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

28

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 31

1шт.

31

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

32

86991772

TUBE,8 mm OD

Pinion Lube

1шт.

33

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Inc. 31 & 35

1шт.

34

86985637

FITTING

M14 or x 1.6 orfice, Incl 31

1шт.

35

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 41
