Запчасти Case IH STEIGER 450 (21.155.01) - TRANSMISSION - POWER SHIFT - SHAFT ASSEMBLIES AND CLUTCHES, PS4, 8C AND 8.5C (21) - TRANSMISSION

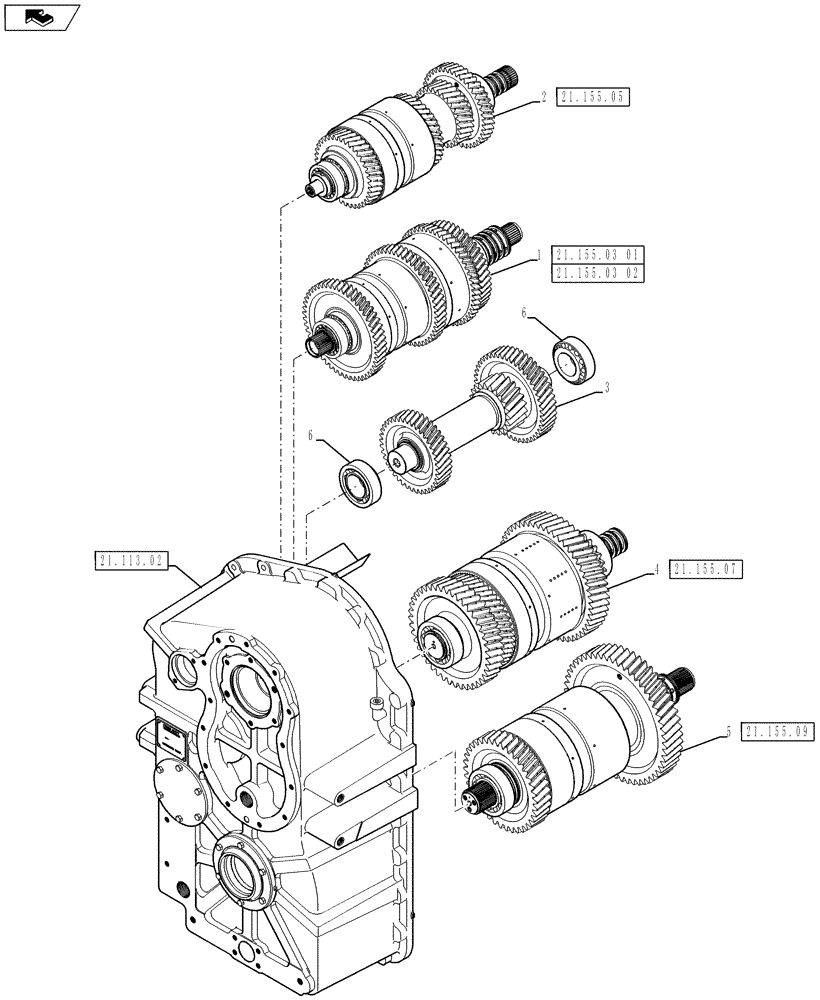

Схема запчастей Case IH STEIGER 450 - (21.155.01) - TRANSMISSION - POWER SHIFT - SHAFT ASSEMBLIES AND CLUTCHES, PS4, 8C AND 8.5C (21) - TRANSMISSION
1
21.155.03 02
3
home
21.155.03 01
21.155.07
2
5
4
6
21.113.02
6
21.155.05
21.155.09

Артикул

Название

Примечание

Количество

1

87552053

CLUTCH INPUT SHAFT

1st, 7 Clutch, 8C

1шт.

1

87552050

CLUTCH INPUT SHAFT

1st, 7 Clutch, 8.5C

1шт.

2

87350268

CLUTCH INPUT SHAFT

2nd, 7 Clutch, 8C

1шт.

2

87350264

CLUTCH INPUT SHAFT

2nd, 7 Clutch, 8.5C

1шт.

3

87350476

GEAR SHAFT

3rd, 8C & 8.5C

1шт.

4

87350312

CLUTCH INPUT SHAFT

4th, 9 Clutch, 8C

1шт.

4

87350309

CLUTCH INPUT SHAFT

4th, 9 Clutch, 8.5C

1шт.

5

87350349

CLUTCH INPUT SHAFT

5th, 8 Clutch, 8C

1шт.

5

87350342

CLUTCH INPUT SHAFT

5th, 8 Clutch, 8.5C

1шт.

6

87431397

ROLLER BEARING,60mm ID x 110mm OD x 38mm W

Taper Roller

2шт.

Выбрано товаров: 10
