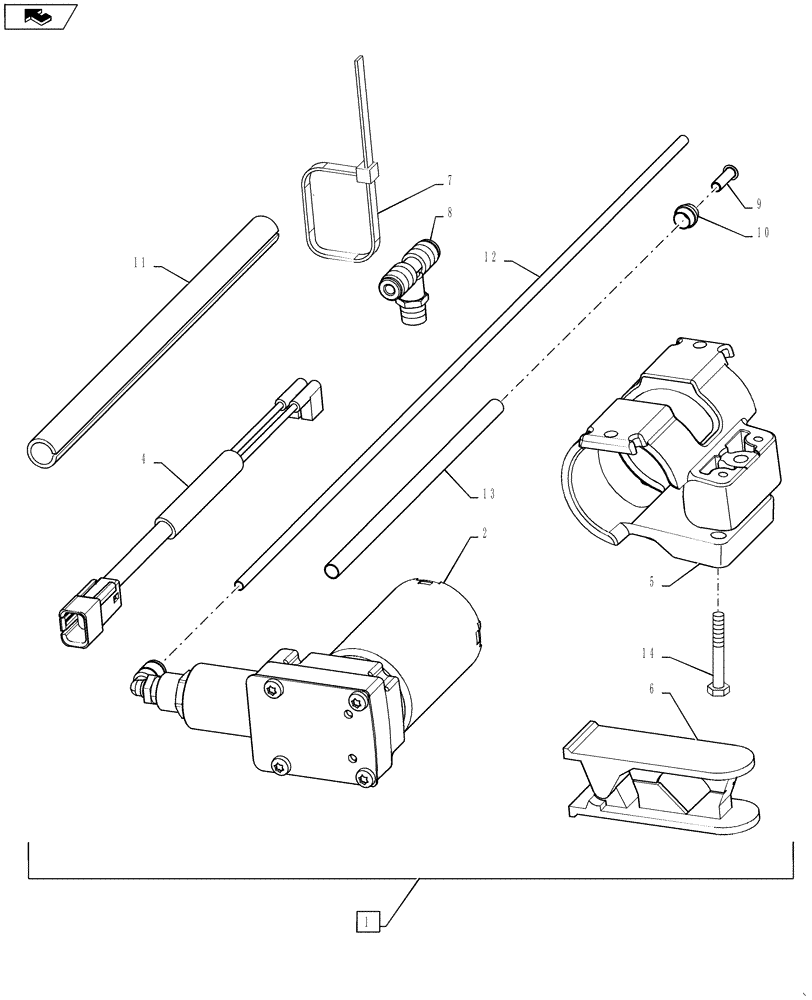

Запчасти Case IH STEIGER 450 (90.124.01[05]) - SEAT, AIR SUSPENSION - COMPRESSOR SERVICE KIT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84392273

KIT

Seat Compressor Service Kit - Incl 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

Compressor, 12V, 1/8 NPT Short

1шт.

3

NSS

NOT SOLD SEPARAT

Instruction Sheet (Not Shown)

1шт.

4

NSS

NOT SOLD SEPARAT

Harness, 4 Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Clamp, Compressor

1шт.

6

NSS

NOT SOLD SEPARAT

Cutter, Plastic Tube

1шт.

7

NSS

NOT SOLD SEPARAT

Cable Tie

5шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Tee, Male Branch, 5/32 x 1/8 NPT

1шт.

9

NSS

NOT SOLD SEPARAT

Support, Tube

1шт.

10

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

11

NSS

NOT SOLD SEPARAT

Tube, Convoluted, 1/2 OD x 8 L

1шт.

12

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 5/32 OD x 32 L

1шт.

13

NSS

NOT SOLD SEPARAT

Tubing, Nylon, 1/4 OD x 6 L

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, #8 x 1.25, Slotted Hex Hd. Flange

2шт.
