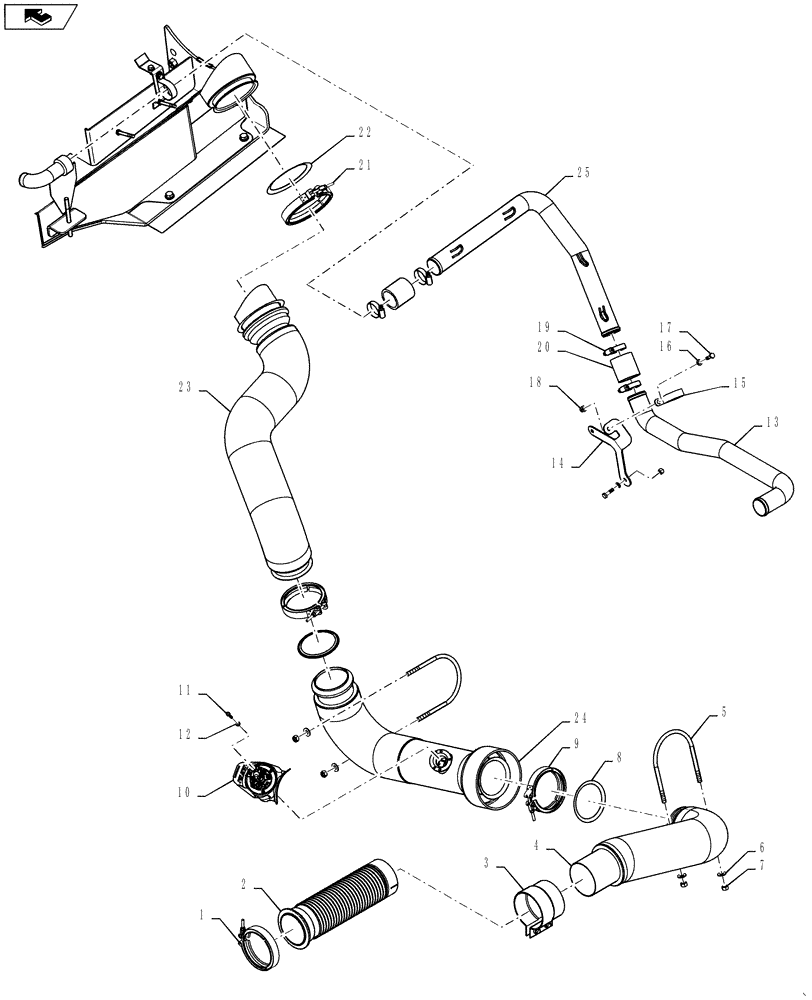

Запчасти Case IH STEIGER 450 (10.254.01[09]) - EXHAUST SYSTEM - HORIZONTAL, STEIGER 400-450, EUROPE ONLY (ASN: ZCF1400001) (10) - ENGINE

1

84347357

CLAMP

Exhaust

1шт.

2

84370370

TUBE

Exhaust

1шт.

3

90-8319T1

CLAMP

Exhaust Clamp

1шт.

4

84306561

EXHAUST SYSTEM PIPE,101.60 mm, 127.00 mm OD

Turbo to Doser

1шт.

5

84354957

U-BOLT

2шт.

6

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

8

84349222

GASKET,1.3mm Thk

Exhaust

2шт.

9

84356331

CLAMP,118mm OD x 26mm W

2шт.

10

84248058

MODULE

DENOX2 Dosing

1шт.

10

47511725R

REMAN ELECT CONTROL

STEIGER 400, STEIGER 450, Both 4WD TRACTOR, DENOX2 Dosing (12/10-), Reman for New PN 84248058

1шт.

10

47511725C

CORE-ELECTRONIC CONT

Return Number

1шт.

11

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

13

84490169

AIR INTAKE TUBE

1шт.

14

84491535

BRACKET

Aspirattor Tube Support

1шт.

15

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

17

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

18

412250

NUT,M8 x 1.25, Cl 8

2шт.

19

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

20

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

2шт.

21

84469765

CLAMP,Exhaust; 5"

Hose Clamp

1шт.

22

84349224

GASKET

Exhaust

1шт.

23

84490172

TUBE

Double Wall

1шт.

24

84412504

TUBE

Doser Assy.

1шт.

25

84490143

AIR INTAKE TUBE

Aspirator

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
