Запчасти Case IH STEIGER 450 (88.037.01) - DIA KIT, ADDITIONAL PRODUCTS - REAR FRAME BALLAST WEIGHT CASTING (RC) (88) - ACCESSORIES

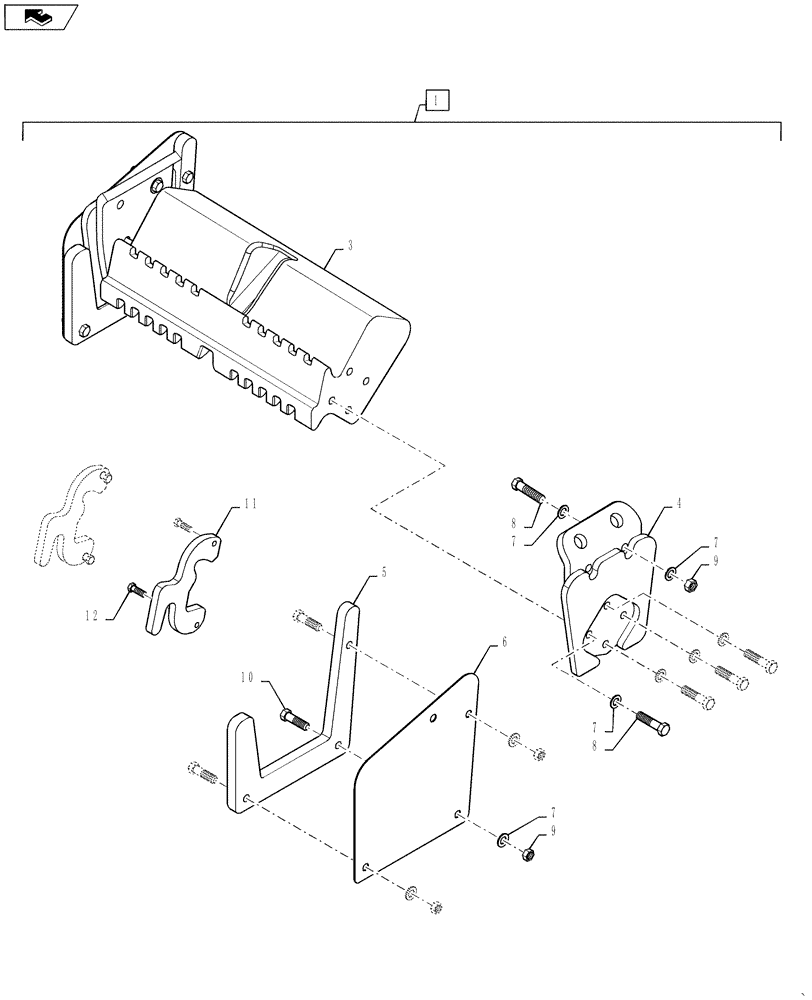

Схема запчастей Case IH STEIGER 450 - (88.037.01) - DIA KIT, ADDITIONAL PRODUCTS - REAR FRAME BALLAST WEIGHT CASTING (RC) (88) - ACCESSORIES
7
7
11
7
9
10
6
1
7
home
8
8
12
9
4
5
3

Артикул

Название

Примечание

Количество

1

84312305

KIT

DIA Kit - REAR WEIGHT ASSY. - Incl 2 - 12

1шт.

2

84308060

INSTRUCTION

INSTALLATION

1шт.

3

413394A1

FRAME

WEIGHT, SMALL FRAME REAR (MACH)

1шт.

4

84211259

BRACKET, SUPPORTING

BRACKET W, WEIGHT LIFT

2шт.

5

413391A2

BRACKET

REAR WEIGHT SUPPORT

2шт.

6

413392A2

PLATE

WEIGHT SCRAPE

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

18шт.

8

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

10шт.

9

829-1420

NUT,M20, Cl 10

8шт.

10

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

6шт.

11

413393A1

PLATE

SUITCASE LOCK

2шт.

12

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

Выбрано товаров: 12
