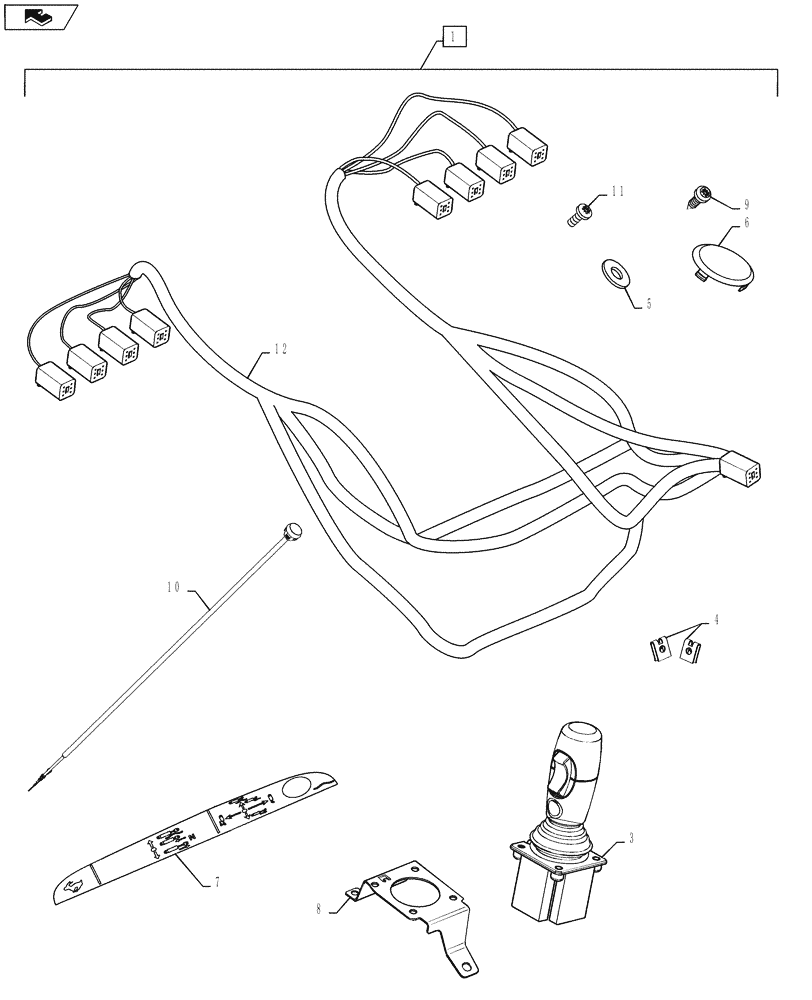

Запчасти Case IH STEIGER 450 (88.035.09) - DIA KIT, ADDITIONAL PRODUCTS - 4 T0 8 SPOOL EH REMOTES (88) - ACCESSORIES

1

84330952

KIT

DIA Kit - 4 to 8 Spool EH Remotes - Incl 2 - 18

1шт.

2

84319337

INSTRUCTION

Installation (Not Shown)

1шт.

3

84208738

JOYSTICK

Assy., Prop Rocker

1шт.

84208738R

REMAN-JOYSTICK

STEIGER 350, STEIGER 400, STEIGER 450 ALL (12/10-)

1шт.

84208738C

CORE-JOYSTICK

Return Number

1шт.

4

84148337

SPRING NUT

Spring, 4.8

5шт.

5

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

6

87725444

BLANK-OFF PLUG,57.5mm OD, Black

Less Joystick

1шт.

7

84126448

DECAL

EHR w/ Joystick

1шт.

8

84202338

BRACKET

Joystick

1шт.

9

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

10

87485775

SWITCH ASSY

Joystick Float

1шт.

11

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

12

84158327

WIRE HARNESS

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

(Not Shown)

6шт.

14

435437A1

CABLE TIE,3/16" x 7 1/4"

(Not Shown)

1шт.

15

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

(Not Shown)

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

(Not Shown)

4шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

(Not Shown)

2шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

(Not Shown)

2шт.
