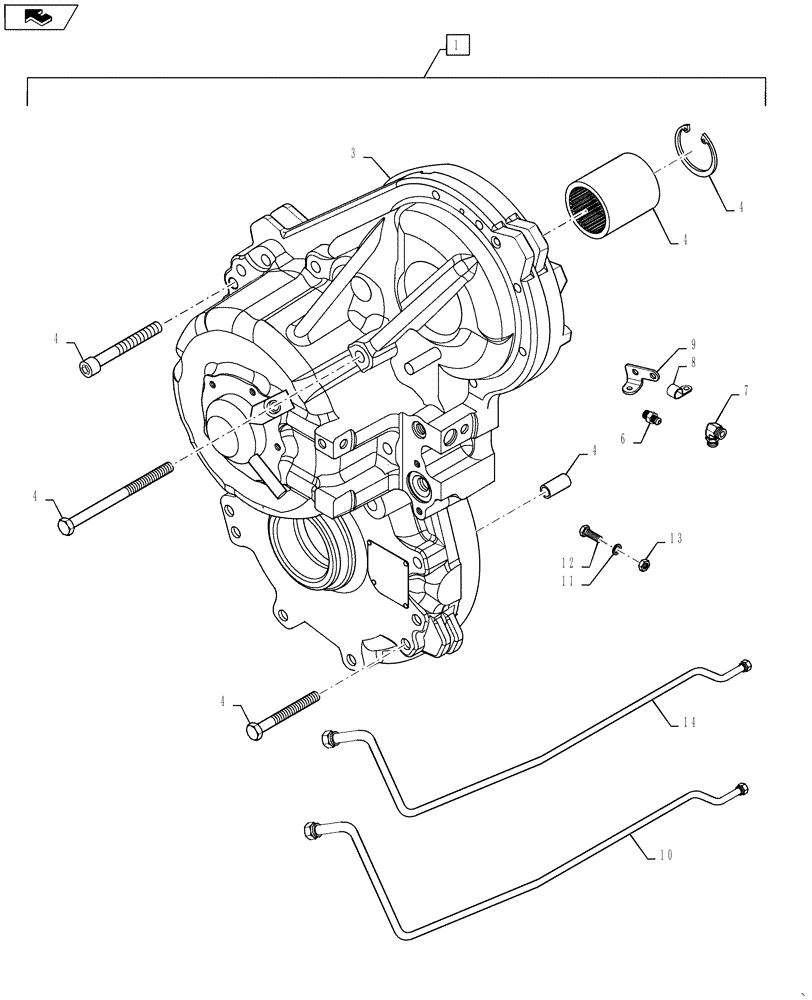

Запчасти Case IH STEIGER 450 (88.035.04) - DIA KIT, ADDITIONAL PRODUCTS - AUX. PUMP DRIVE KIT (88) - ACCESSORIES

1

84366432

KIT

DIA Kit - Aux. Pump Drive Kit - Incl 2 - 14

1шт.

2

84365933

INSTRUCTION

Installation (Not Shown)

1шт.

3

84317512

TRANSMISSION

HYD PUMP

1шт.

4

84211194

KIT

PTO MOUNTING

1шт.

5

345-126

SEAL

SEALANT

1шт.

6

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

7

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

9

84283861

BRACKET

PTO CLUTCH TUBE SUPPORT

1шт.

10

84283540

HYD TUBE

PTO CLUTCH LUBE PS4

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

84283544

HYD TUBE

PTO CLUTCH LUBE PS6

1шт.

15

345-126

SEAL

Sealant

1шт.
