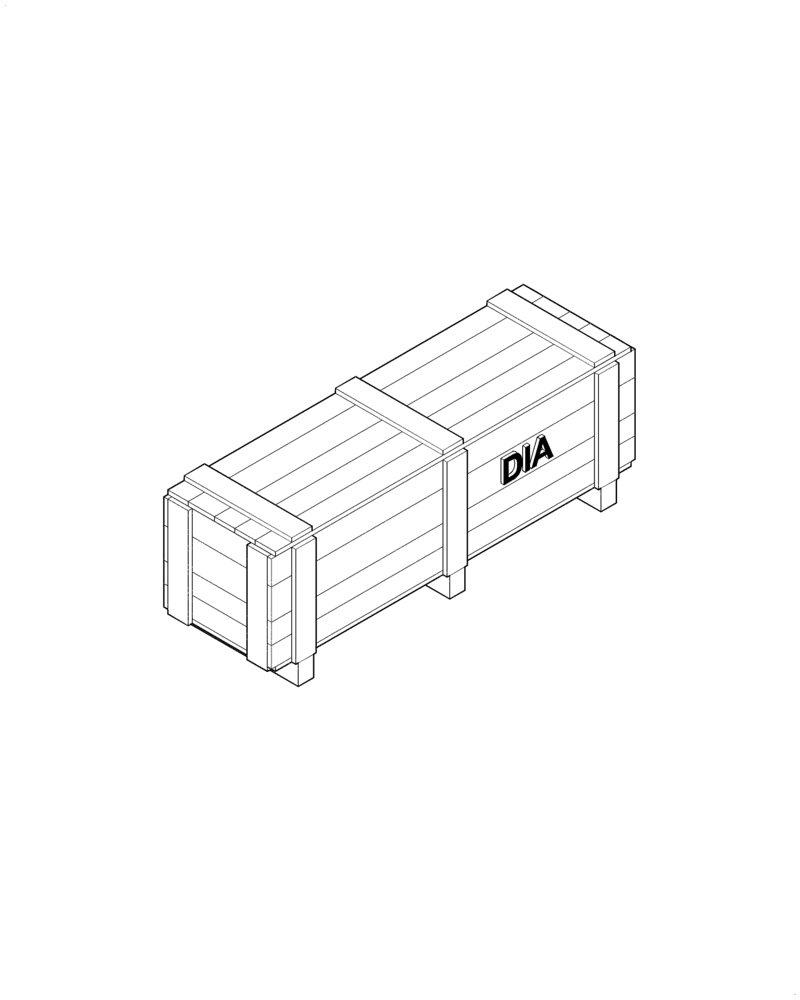

Запчасти Case IH STEIGER 450 (88.035.02[02]) - DIA KIT, ADDITIONAL PRODUCTS - MEGAFLOW / TWINFLOW, ASN ZCF129192 (88) - ACCESSORIES

1

84603724

KIT

DIA Kit - Megaflow / Twinflow Hydraulics - Incl 2 - 48

1шт.

2

47495737

INSTRUCTION

Installation

1шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

4

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

6

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

7

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

8

84178463

HYDRAULIC PUMP,85 CC

Megaflow, 85CC

1шт.

9

A14141

FLANGE

2"

4шт.

10

84195080

FLANGE

Hydrostatic Pump

1шт.

11

84194169

HYD TUBE

Megaflow Supply

1шт.

12

84423449

HOSE ASSY.,25.4mm ID x 3302mm L, SAE 100R17

Hi-Flow Supply, Rowcrop

1шт.

13

84423451

HOSE ASSY.

Hi-Flow Load Sense, Rowcrop

1шт.

14

84604396

HOSE ASSY.

Hi-Flow Supply, Rowtrac

1шт.

15

84604397

HOSE ASSY.

Hi-Flow Load Sense, Rowtrac

1шт.

16

84194173

HOSE ASSY.,25.4mm ID x 686mm L, SAE 100R1

Megaflow Supply

1шт.

17

84197262

HOSE ASSY.,15.88mm ID x 552mm L, SAE 100R1

Megaflow Pump Drain

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

19

87530644

SCREW,M10 x 55mm, Cl 8.8

4шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

22

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

23

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

25

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

3шт.

26

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

Hose Clamp

2шт.

27

84299704

BRACKET, SUPPORTING

Hi-Flow Hose Support

1шт.

28

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

30

827-6080

BOLT,Hex, M6 x 80mm, Cl 10.9

2шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

33

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

34

1957867C1

FILTER SCREEN

Hydraulic Pump

1шт.

35

47507060

BRACKET

Hose Support

1шт.

36

11032331

BOLT,Hex, M6 x 90mm, Cl 10.9

2шт.

37

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

38

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

Tube

2шт.

39

221579A1

PLUG,M22 x 1.5 ORB

1шт.

40

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

41

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

42

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

43

700-148

HYD CONNECTOR,2" - 12 Male ORFS x M48 x 2 Male ORB

1шт.

44

47768635

FILTER

Dual

1шт.

45

84191470

ADAPTER

Dual Filter

1шт.

46

84183785

HYD TUBE

Filter Inlet, Hi-Flow

1шт.

47

84543509

HYD TUBE

Filter Outlet, Hi-Flow

1шт.

48

86624981

BOLT,Hex, M12 x 85mm, Cl 8.8

4шт.
