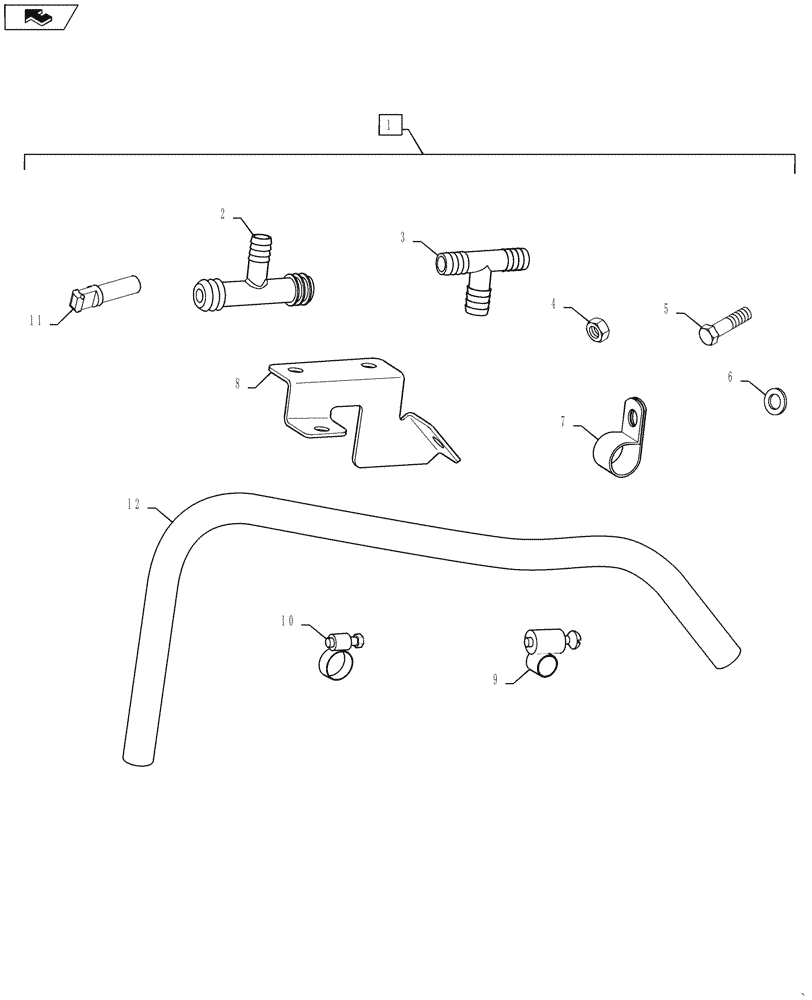

Запчасти Case IH STEIGER 450 (88.010.05) - DIA KIT - DEF TANK BREATHER (88) - ACCESSORIES

1

47374668

KIT

DEF Tank Breather, Incl 2 - 12

1шт.

2

47361885

TEE

3/4 ID x 1/2 ID x 3/4 ID Hose Barb

1шт.

3

47362801

TEE

1/2 ID x 1/2 ID x 1/2 ID Hose Barb

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

8

47357924

BRACKET

DEF Breather

1шт.

9

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

10

214-1712

HOSE CLAMP,17.53mm - 31.75mm

2шт.

11

84208502

PLUG,10mm OD x 42.4mm L

1шт.

12

47365330

HOSE

DEF Tank Fill Vent

1шт.
