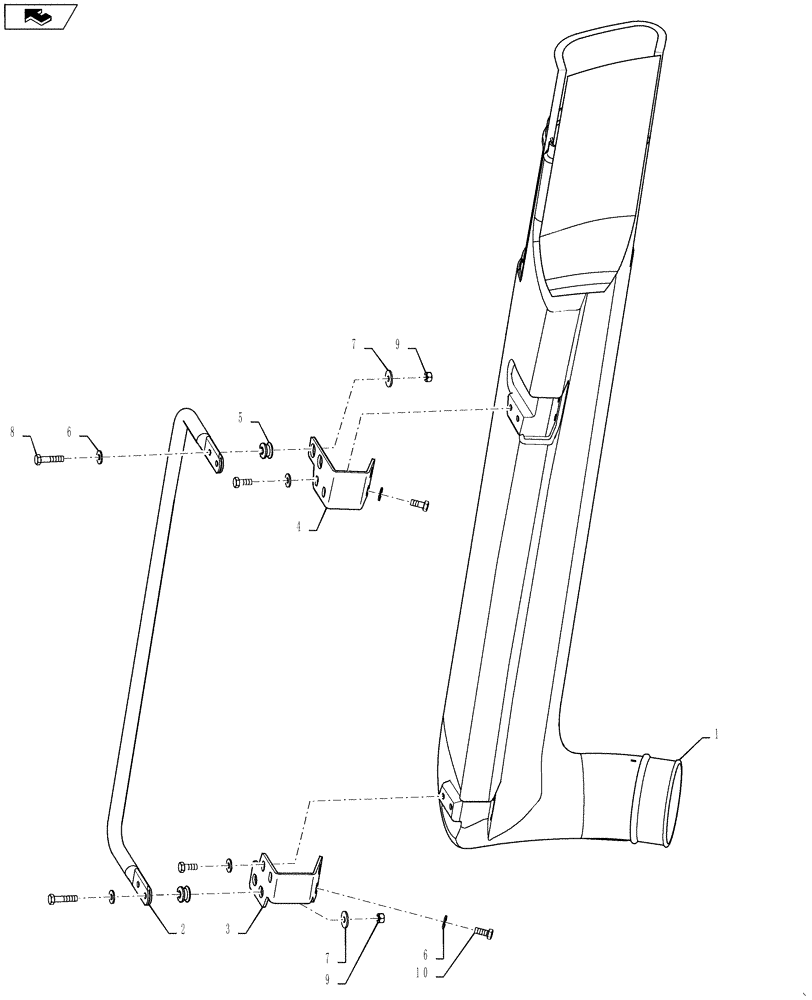

Запчасти Case IH STEIGER 450 (10.202.02[03]) - AIR CLEANER - AIR INTAKE PARTS - DUCT MOUNTING & LH GRAB RAIL MOUNTING (10) - ENGINE

1

84265256

AIR INTAKE TUBE

1шт.

2

84255661

HANDLE

Grab

1шт.

3

84355574

BRACKET, SUPPORTING

Bottom Air Duct Mounting

1шт.

4

84481269

BRACKET

Top Air Duct Mounting

1шт.

5

434177A1

ISOLATOR

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

9

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.
