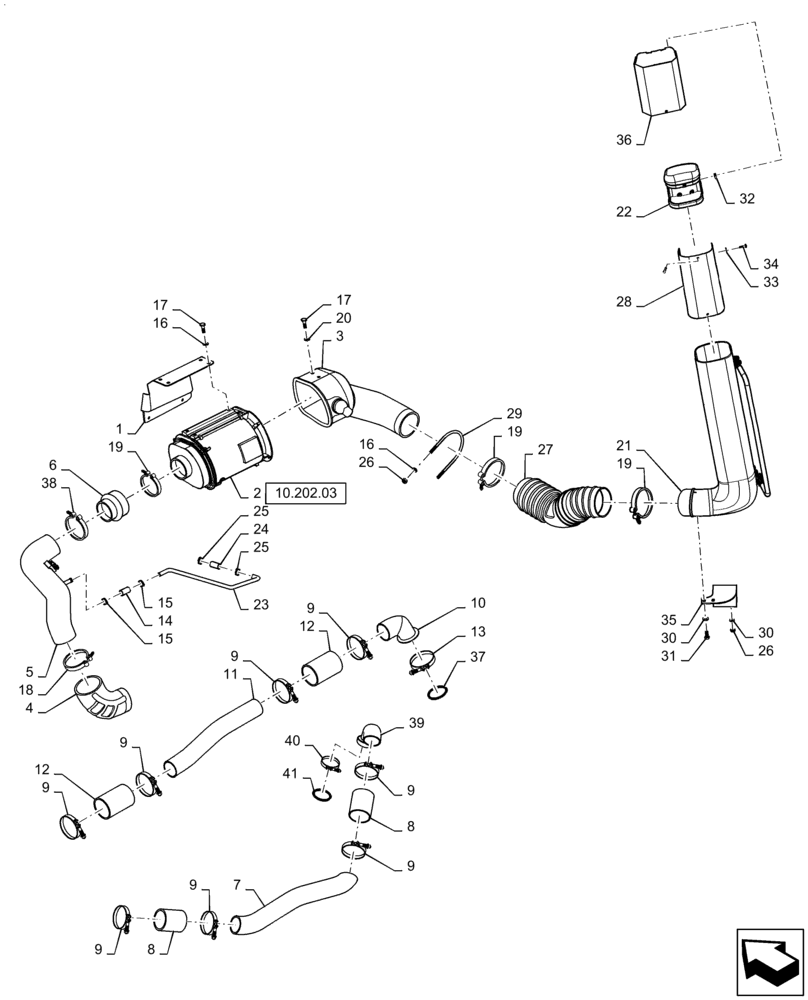

Запчасти Case IH STEIGER 450 (10.202.02[01]) - AIR CLEANER - AIR INTAKE PARTS - STEIGER 400 AND 450 (10) - ENGINE

1

84355594

BRACKET

Air Cleaner

1шт.

2

84407845

AIR CLEANER

Assy.

1шт.

3

84355752

AIR INTAKE TUBE

1шт.

4

84426356

AIR INTAKE TUBE

Air Intake

1шт.

5

84357931

AIR INTAKE TUBE

1шт.

6

84263519

BELLOWS

1шт.

7

84370831

AIR INTAKE TUBE

Tube, Charge Air, Turbo to CAC

1шт.

8

87340760

INTAKE AIR HOSE,88.90 mm ID x 110.00

2шт.

9

47616394

CLAMP,83mm - 105mm, Worm Gear

8шт.

10

84223171

ELBOW

Air Intake Connection

1шт.

11

84370830

AIR INTAKE TUBE

Tube, Charge Air Engine Intake

1шт.

12

84174189

INTAKE AIR HOSE

Cold Side

2шт.

13

84223170

CLAMP,125mm ID, V-Band

V-Band

1шт.

14

87486602

HOSE

Breather to Breather

1шт.

15

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

11шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

14шт.

18

84129690

CLAMP,5.44" - 5.75"

#146, Years: -01-JUN-12

2шт.

18

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

, Start Year: 01-JUN-12

2шт.

19

87656134

HOSE CLAMP,6.38" - 6.69"

#176, Years: -01-JUN-12

1шт.

19

84319920

HOSE CLAMP,146mm - 168mm

, Start Year: 01-JUN-12

1шт.

20

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

21

84265256

AIR INTAKE TUBE

1шт.

22

84276357

AIR INTAKE TUBE

Extension

1шт.

23

84266067

AIR INTAKE TUBE

Tube, Vacuum

1шт.

24

84209408

AIR HOSE

Breather to Breather Tube

1шт.

25

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

27

84374253

BELLOWS

Bellow, Row Crop

1шт.

28

84276360

FILTER SCREEN

Air Inlet

1шт.

29

84356764

U-BOLT

M8 x 152.4 x 178mm

1шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

14шт.

31

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

10шт.

32

76047274

NUT,M6 x 1

10шт.

33

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x18 x 1.6mm

10шт.

34

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

PHD, M6 x 20mm

10шт.

35

84339807

BRACKET, SUPPORTING

Air Duct

1шт.

36

84283226

CAP

Shipping

1шт.

37

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

38

84281055

HOSE CLAMP,5.25" - 5.56"

HOSE CLAMP

1шт.

39

504039838

ELBOW

1шт.

40

84076899

CLAMP

V-Band

1шт.

41

47445783

O-RING

1шт.
