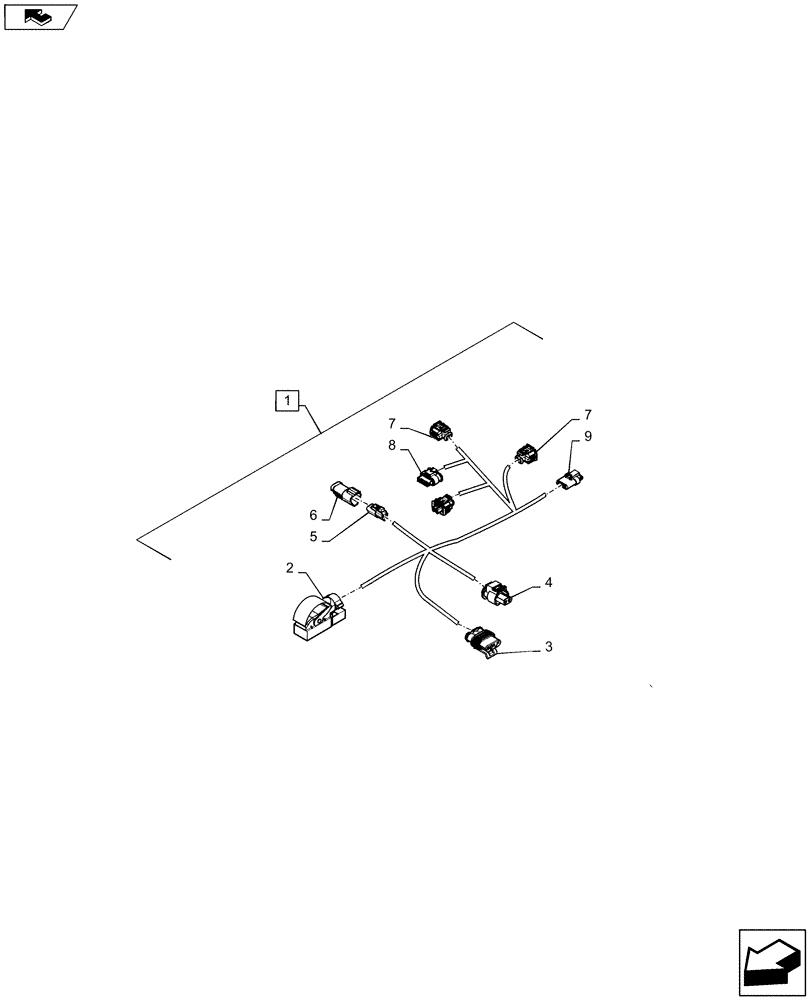

Запчасти Case IH STEIGER 450 (55.100.41) - HARNESS -SLECTIVE CATALYTIC REDUCTION (SCR) CONNECTORS (55) - ELECTRICAL SYSTEMS

1

84293954

HARNESS

SCR Chassis - Incl 2 - 9

1шт.

2

87713291

WIRE CONNECTOR

To DNOX2 Supply Module

1шт.

3

84062580

CONNECTOR, ELEC

DEF Tank Level / Temp Sensor

1шт.

4

84192117

ELEC CONNECTOR

DEF Tank Heater Control Valve

1шт.

5

225295C1

ELEC CONNECTOR,Female, 3 Pin

NOX Bus Terminator

1шт.

6

84058092

CONTACT HOUSING,120 Ohm Resistor

NOX Bus Terminator

1шт.

7

87709793

WIRE CONNECTOR,Female, 2 Cavities

Upstream Temp Sensor, NOS Sensor, DEF Dosing Module

3шт.

8

84190317

WIRE CONNECTOR,Female, 5 Cavities

NOX Sensor

1шт.

9

87382923

ELEC CONNECTOR,Male, 10 Cavities

To Front Frame Harness

1шт.
