Запчасти Case IH STEIGER 450 (44.511.01[02]) - WHEEL - SINGLE - FDW30B X 42 (44) - WHEELS

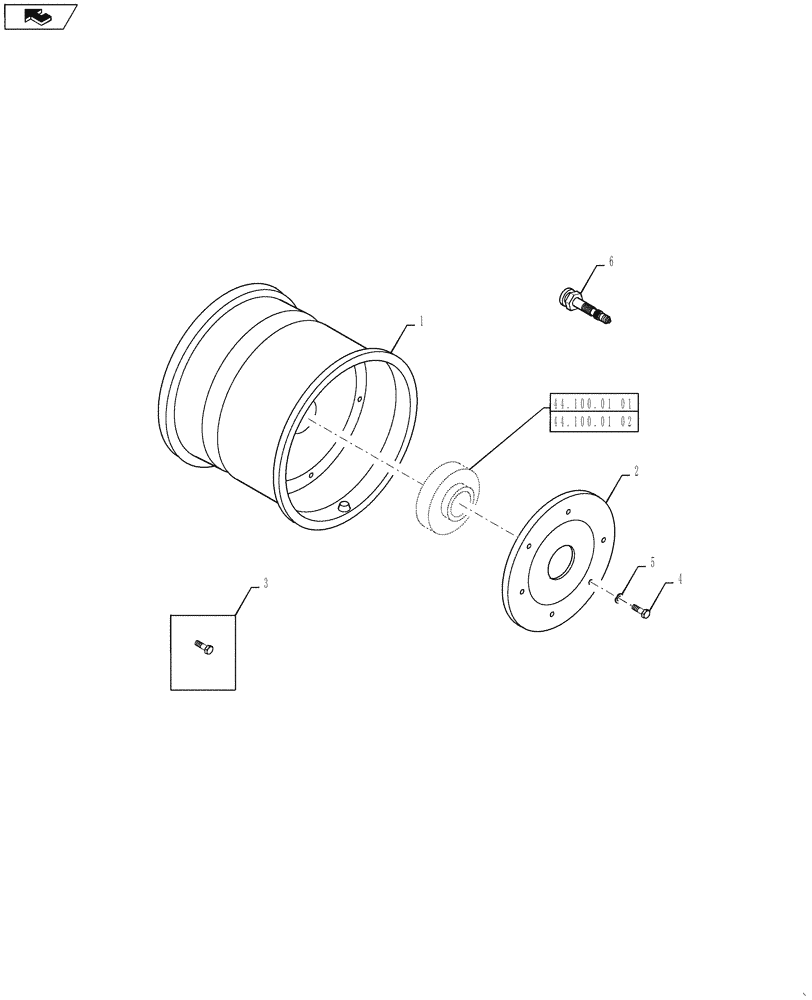

Схема запчастей Case IH STEIGER 450 - (44.511.01[02]) - WHEEL - SINGLE - FDW30B X 42 (44) - WHEELS
44.100.01 02
1
2
44.100.01 01
5
home
3
4
6

Артикул

Название

Примечание

Количество

1

84335368

RIM

FDW30B x 42, For Tires: 900/60R42

4шт.

For Row Crop Frame Tractors with 315 & 425 Series Axles

1шт.

2

NSS

NOT SOLD SEPARAT

DISK, Outer Wheel

4шт.

3

NSS

NOT SOLD SEPARAT

BOLT, M16 x 2 x 40

8шт.

REF

INSTRUCTION

HUB, Wheel, See Figure 44.100.01

4шт.

4

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

64шт.

5

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

64шт.

6

87380452

VALVE STEM

13/16 Rim Hole

4шт.

Выбрано товаров: 8
