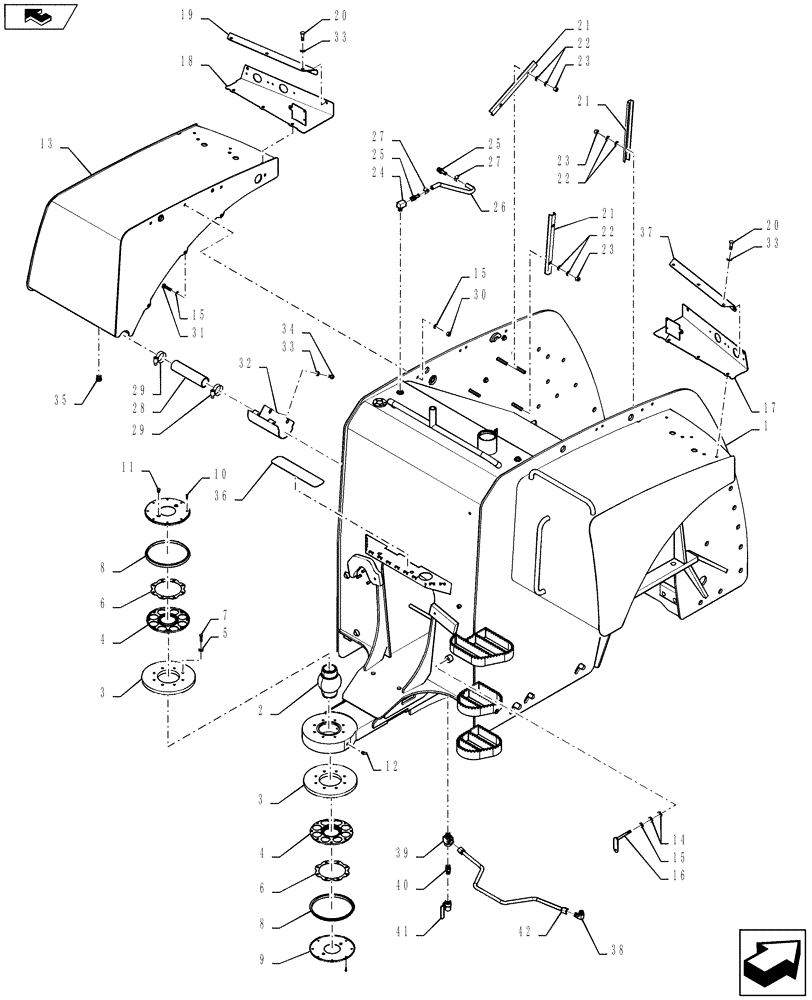

Запчасти Case IH STEIGER 450 (39.100.04) - REAR FRAME, STEIGER 400 AND 450 (39) - FRAMES AND BALLASTING

1

84416675

FRAME

FRAME, REAR, Steiger 40-450

1шт.

2

87311338

SPHERICAL BEARING,50.98mm ID x 120.64mm OD x 145.2mm W

EXTENDED SPHERICAL PLAIN

1шт.

3

330032A1

COVER

RETAINER

2шт.

4

87365383

BEARING ASSY

2шт.

5

432444A1

SPACER

UNIBALL

16шт.

6

430250A1

RETAINER

PLATE

2шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

433478A1

SEAL

SEAL, OUTER

2шт.

9

87365381

COVER

2шт.

10

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

4шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

84152784

FUEL TANK

1шт.

14

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

RUBBER

2шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

10шт.

16

406390A1

HANDLE

1шт.

17

84476768

MOUNTING PLATE

LH Light Pod

1шт.

18

84476775

MOUNTING PLATE

RH Light Pod

1шт.

19

84476772

MOUNTING PLATE

RH Light Pod Mount

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

21

84348150

CHANNEL

WIRE GUARD

3шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

24

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1шт.

25

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

2шт.

26

84153077

HOSE

FORMED RUBBER

1шт.

27

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

2шт.

28

84247008

FUEL HOSE,50.8mm ID x 245mm L, SAE 30R6

1шт.

29

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

30

832-10412

NUT,M12 x 1.75, Cl 8

7шт.

31

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

32

84348159

COVER

FUEL HOSE

1шт.

33

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

18шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

35

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

36

D55216

PAD,2" x 9"

1шт.

37

84476765

MOUNTING PLATE

LH Light Pod Mount

1шт.

38

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

39

31-1000

TEE

.5 NPTF Male x .5 NPT Female x .63 Tube

1шт.

40

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

41

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Ball Valve

1шт.

42

84359547

TUBE

Fuel Cross Over - Row Crop

1шт.
