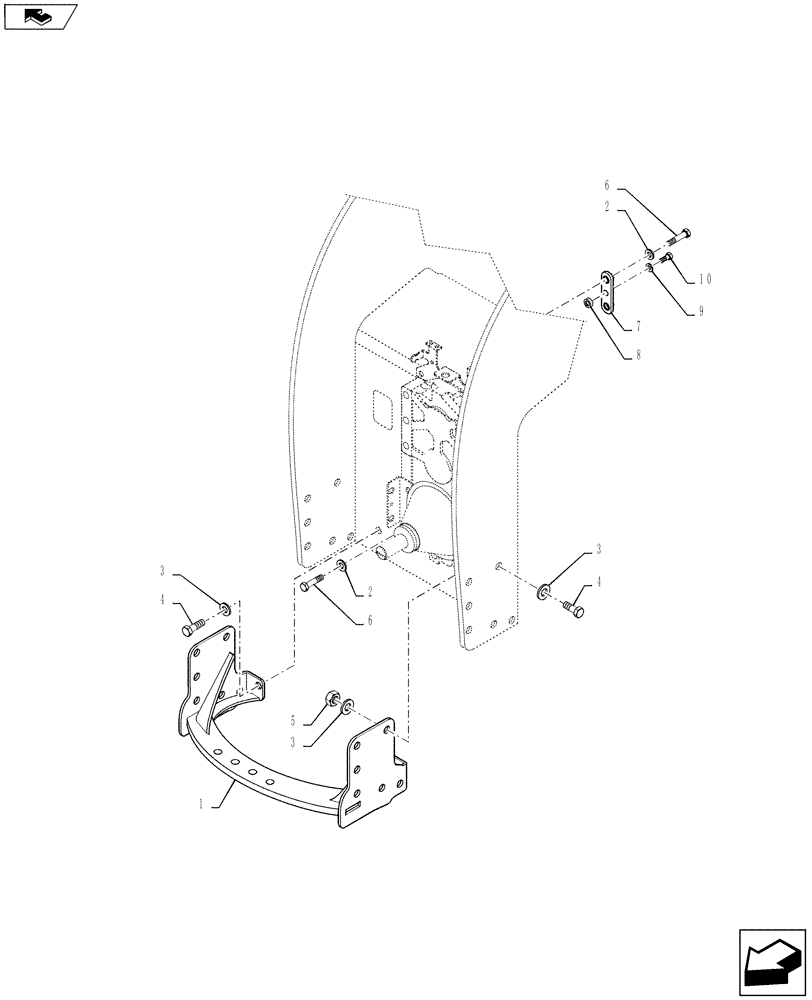

Запчасти Case IH STEIGER 450 (37.100.12) - DRAWBAR FRAME - DRAWBAR WITH PTO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84160919

HANGER

Standard Drawbar

1шт.

1

84151704

HANGER

Offset Drawbar

1шт.

2

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

8шт.

3

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

26шт.

4

86505751

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

5

9848973

NUT,M24 x 3.0, Cl 10

12шт.

6

86624993

BOLT,Hex, M20 x 190mm, Cl 10.9

8шт.

7

259389A1

PLATE

Nut

2шт.

8

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

SPACER

2шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

86639032

BOLT,Hex, M16 x 25mm, Cl 10.9, Full Thd

2шт.
