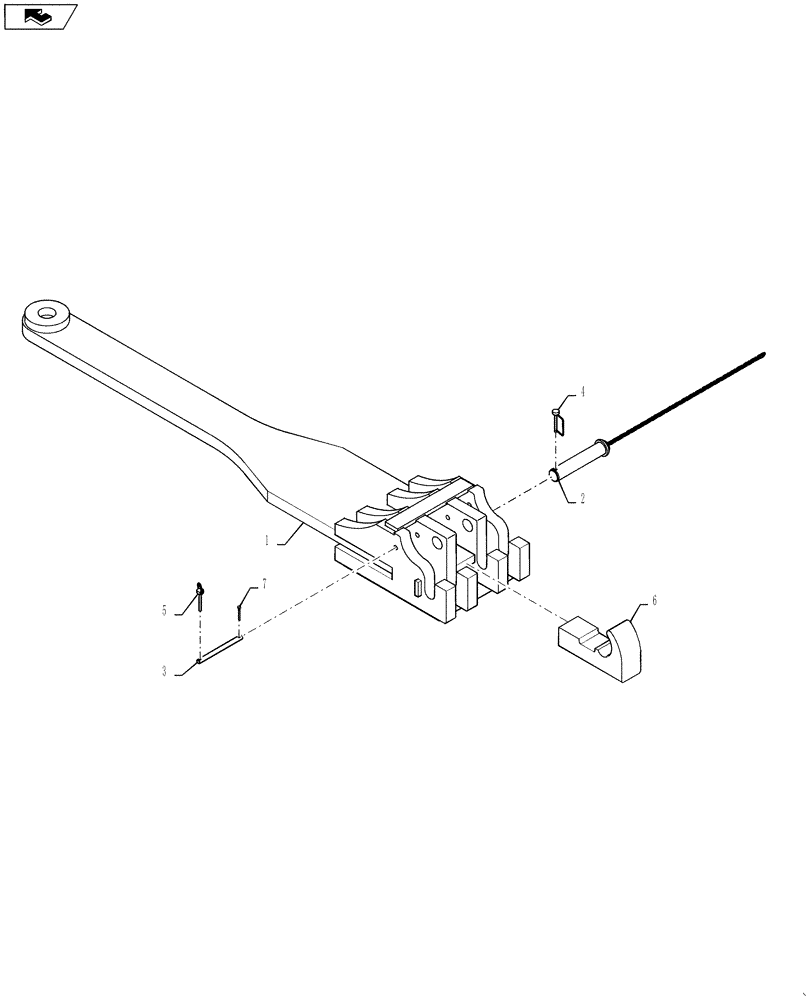

Запчасти Case IH STEIGER 450 (37.100.05) - DRAWBAR - ASSY - SCRAPER ASSEMBLY - STEIGER 450 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84268954

DRAWBAR

Drawbar, Scraper Assembly

1шт.

2

84270658

LOCK PIN,193.8mm L

With Chain

1шт.

3

84270656

PIN,181.1mm L

1шт.

4

84270653

CLIP

1шт.

5

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

1.25 x 1.062 x .13 Thick

1шт.

6

84270661

LOCK PIN

1шт.

7

87399

COTTER PIN,1/2 x 3 Bolt

1шт.
