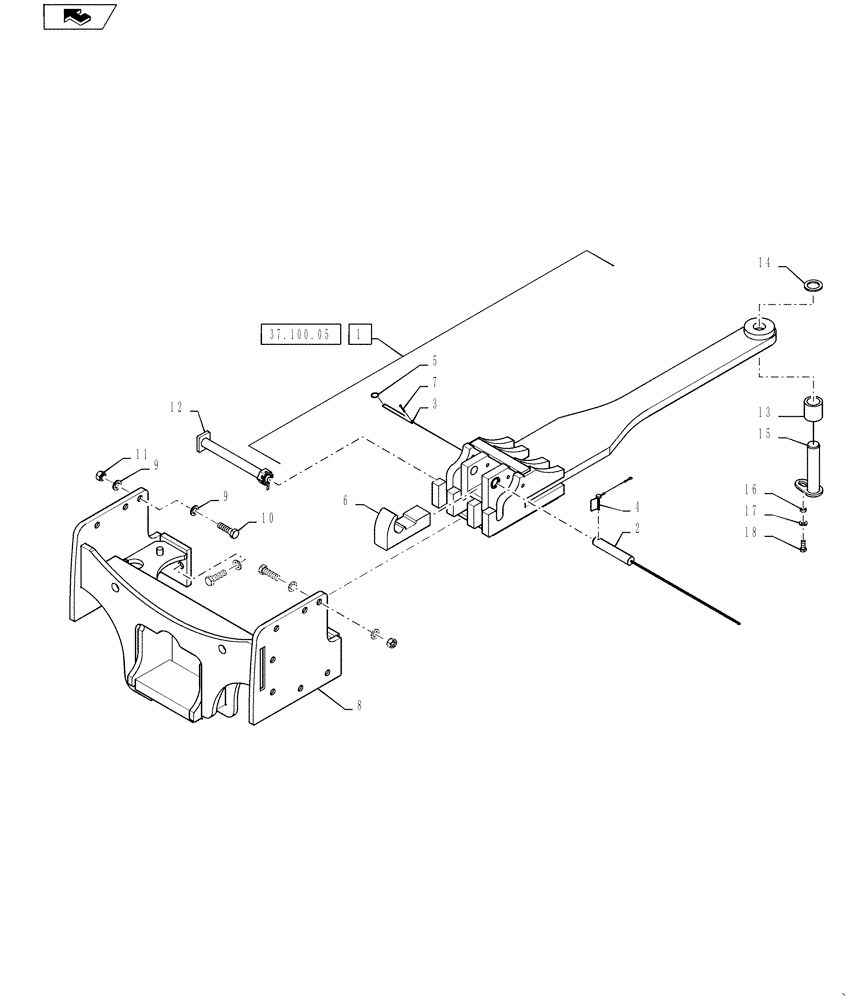

Запчасти Case IH STEIGER 450 (37.100.04) - DRAWBAR - ASSY - SCRAPER QUICK HITCH - STEIGER 450 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84268954

DRAWBAR

Scraper, Incl 2 - 7

1шт.

2

84270658

LOCK PIN,193.8mm L

Keeper, with chain

1шт.

3

84270656

PIN,181.1mm L

Retainer

1шт.

4

84270653

CLIP

Lock Pin, W/ Lanyard

1шт.

5

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

1шт.

6

84270661

LOCK PIN

1шт.

7

87399

COTTER PIN,1/2 x 3 Bolt

1шт.

8

84187273

HANGER

Drawbar

1шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

10

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

14шт.

11

829-1424

NUT,M24, Cl 10

12шт.

12

84268964

PIN

Ashland Drawbar, Incl Nut & Cotter Pin

1шт.

13

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

Drawbar

1шт.

14

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

2.019 X 3.003 X .25 IN HDN ZND

1шт.

15

87524404

PIN,50.65mm OD x 252mm L

1шт.

16

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

17

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

18

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

19

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

20

829-1416

NUT,M16, Cl 10

2шт.

21

84271889

BRACKET

Optional PTO

1шт.
