Запчасти Case IH STEIGER 450 (37.100.01[01]) - DRAWBAR - WHEELED WITHOUT THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

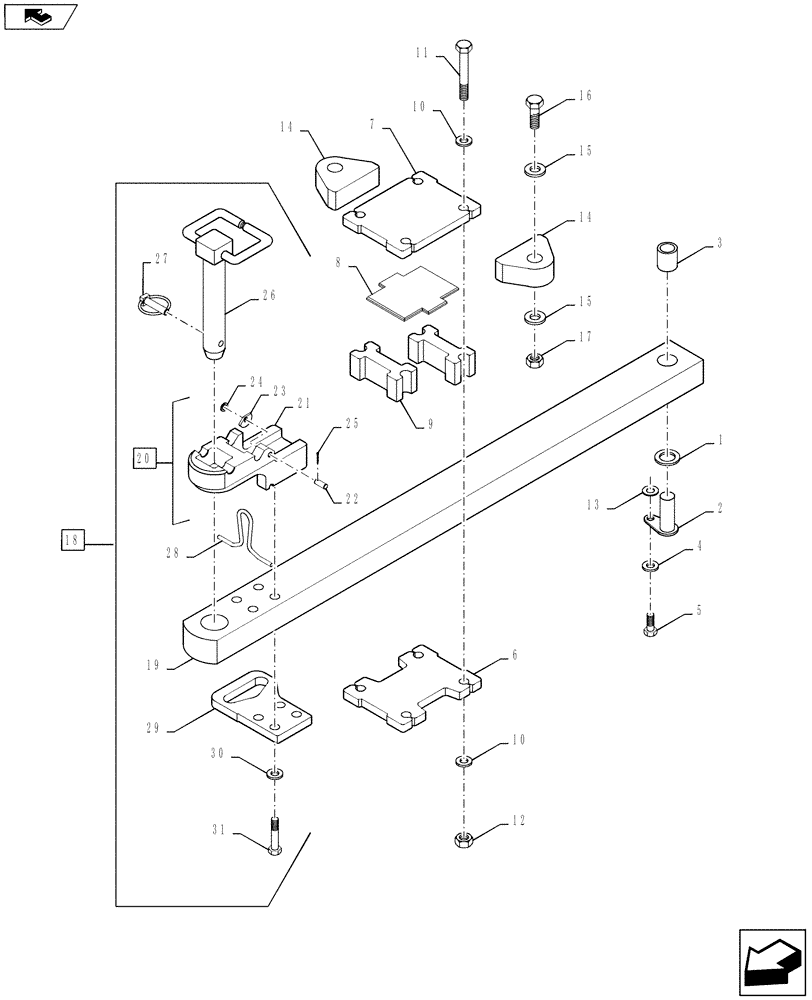

Схема запчастей Case IH STEIGER 450 - (37.100.01[01]) - DRAWBAR - WHEELED WITHOUT THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
8
7
19
23
4
3
27
20
31
24
28
5
11
13
25
17
26
30
10
15
10
6
1
12
14
22
29
9
21
14
2
18
15
home
16

Артикул

Название

Примечание

Количество

1

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

1.763 x 2.750 x .250 IN

1шт.

2

87524404

PIN,50.65mm OD x 252mm L

1шт.

3

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

Drawbar

1шт.

4

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

5

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

6

87567060

PLATE

Drawbar Bottom

1шт.

7

87564455

PLATE

Drawbar Top

1шт.

8

87746694

WEAR PAD

1шт.

9

87564454

SPACER

Drawbar

2шт.

10

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

12шт.

11

87015584

BOLT,Hex, M20 x 220mm, Cl 10.9

4шт.

12

9847024

NUT,M20, Cl 10

4шт.

13

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

SPACER

1шт.

14

87725363

PLATE

Drawbar Stop

2шт.

15

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

4шт.

16

86639186

SCREW,Hex, M24 x 140mm, Cl 10.9

2шт.

17

86639243

NUT,M24 x 3, Cl 8

2шт.

18

87609236

DRAWBAR

Assembly, Heat Treated

1шт.

19

87564456

DRAWBAR

Heavy Duty

1шт.

19

87566722

DRAWBAR

Standard

1шт.

20

87615031

STRAP

Hammerstrap - Incl 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

Hammerstrap

1шт.

22

87016625

CLEVIS PIN,3/8" x 2"

1шт.

23

87617590

STOP LOCK

Secondary

1шт.

24

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8

1шт.

25

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

26

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

27

87522067

LOCK PIN,11.5mm OD

Retaining

1шт.

28

375721A1

PIN

Drawpin Trigger

1шт.

29

87574391

STEEL PLATE

Safety Chain

1шт.

30

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

4шт.

31

84025013

BOLT,Hex, M20 x 140mm, Cl 10.9

4шт.

Выбрано товаров: 32
