(35.204.18) - VALVE COUPLER ASSEMBLY - SCRAPER UNITS

Запчасти Case IH STEIGER 450 (35.204.18) - VALVE COUPLER ASSEMBLY - SCRAPER UNITS (35) - HYDRAULIC SYSTEMS

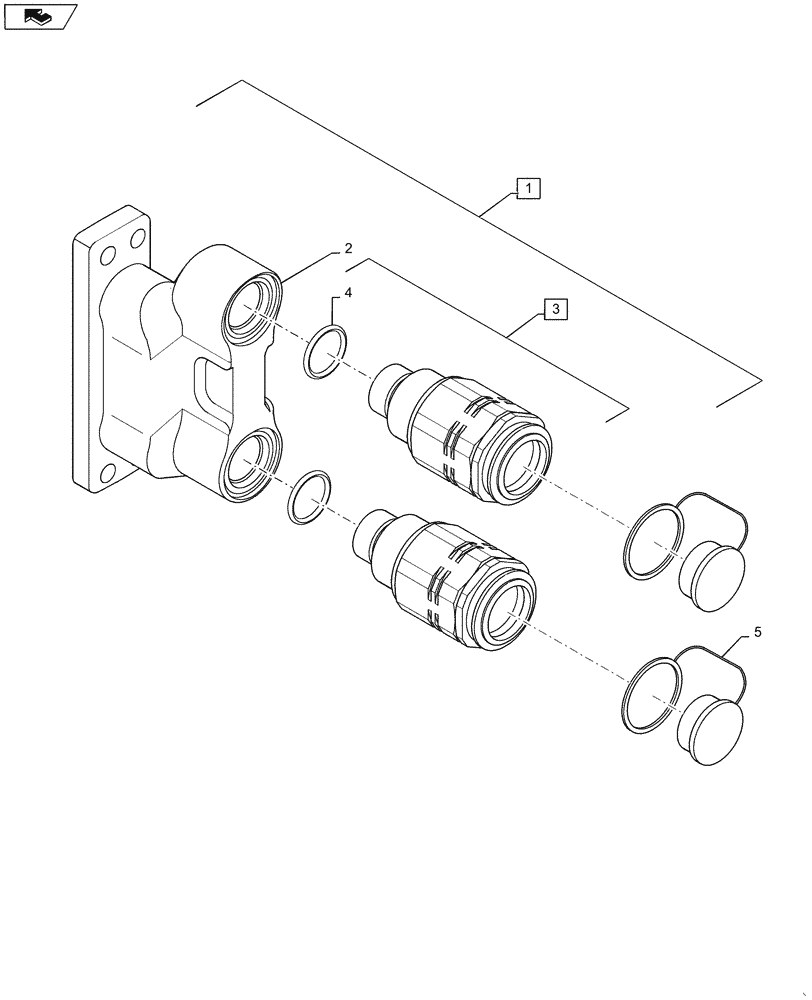

Схема запчастей Case IH STEIGER 450 - (35.204.18) - VALVE COUPLER ASSEMBLY - SCRAPER UNITS (35) - HYDRAULIC SYSTEMS
home
1
4
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

418704A2

COUPLING

Assembly, Mega Flow, Scraper Units, Incl 2 - 4

1шт.

2

418705A1

COUPLING

Manifold, Mega Flow

1шт.

3

84318358

COUPLING

3/4 Auxiliary Coupler, Incl 4

2шт.

4

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

5

334216A1

CAP

Dust

2шт.
