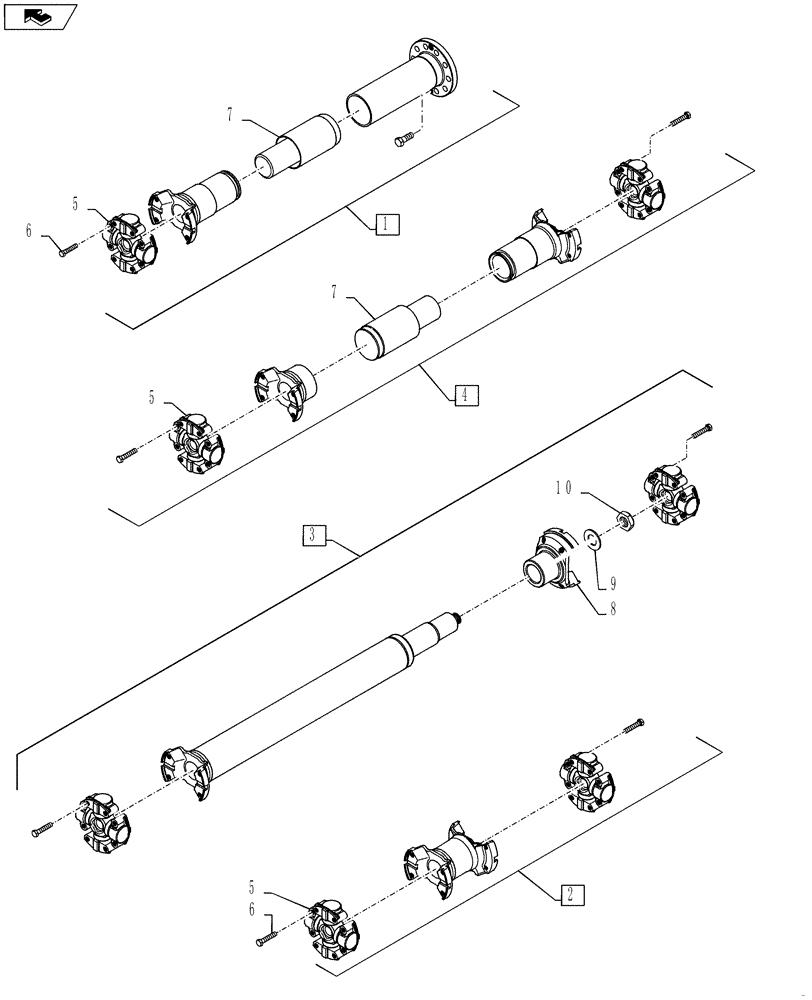

Запчасти Case IH STEIGER 450 (25.310.04) - DRIVE SHAFT - 13L ENGINES - STEIGER 400-450 (25) - FRONT AXLE SYSTEM

1

84182420

DRIVE SHAFT

Engine, 13L - Incl 5 - 7

1шт.

2

84219450

DRIVE SHAFT

Front Axle Drive - Incl 5 - 6

1шт.

3

84302363

DRIVE SHAFT

Rear Axle, Incl 5 - 6, 8 - 10

1шт.

4

84221212

DRIVE SHAFT

Articulation, Incl 5 - 7

1шт.

5

86000308

UNIVERSAL JOINT

Bearing Assy., 8C Spider

6шт.

6

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

24шт.

7

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Wiper

2шт.

8

404451A1

YOKE

8C

1шт.

9

86637815

WASHER,1.31" ID x 2.5" OD x 0.15" Thk

1шт.

10

86637649

LOCK NUT,1 1/4"-18

1шт.
