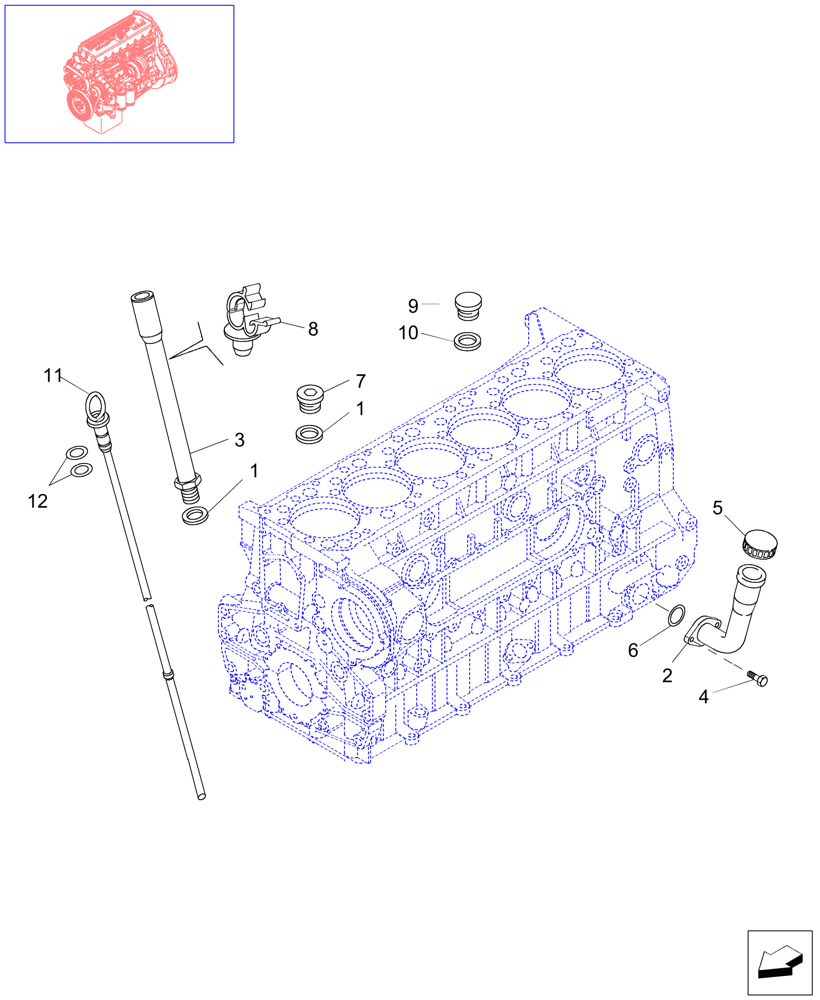

Запчасти Case IH STEIGER 435 (02-55) - OIL DIPSTICK, STEIGER 385 / 435 (02) - ENGINE

1

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

2

504162598

NECK FILLER

Oil Filler

1шт.

3

504124643

PIPE

Dipstick

1шт.

4

16691324

HEX SOC SCREW,M8 x 60mm

M8 x 60

2шт.

5

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

6

14458681

O-RING,1.487" ID x 0.103" Width

D=37.77 x 2.62 mm

1шт.

7

16992515

PLUG

M18 x 5

1шт.

8

500349848

CLAMP

1шт.

9

11903211

PLUG,M12 x 1.25 x 12, Cl5.8

1шт.

10

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

1шт.

11

504124642

DIPSTICK

- ASSY

1шт.

12

504027969

SEALING RING

SEALRING

1шт.
