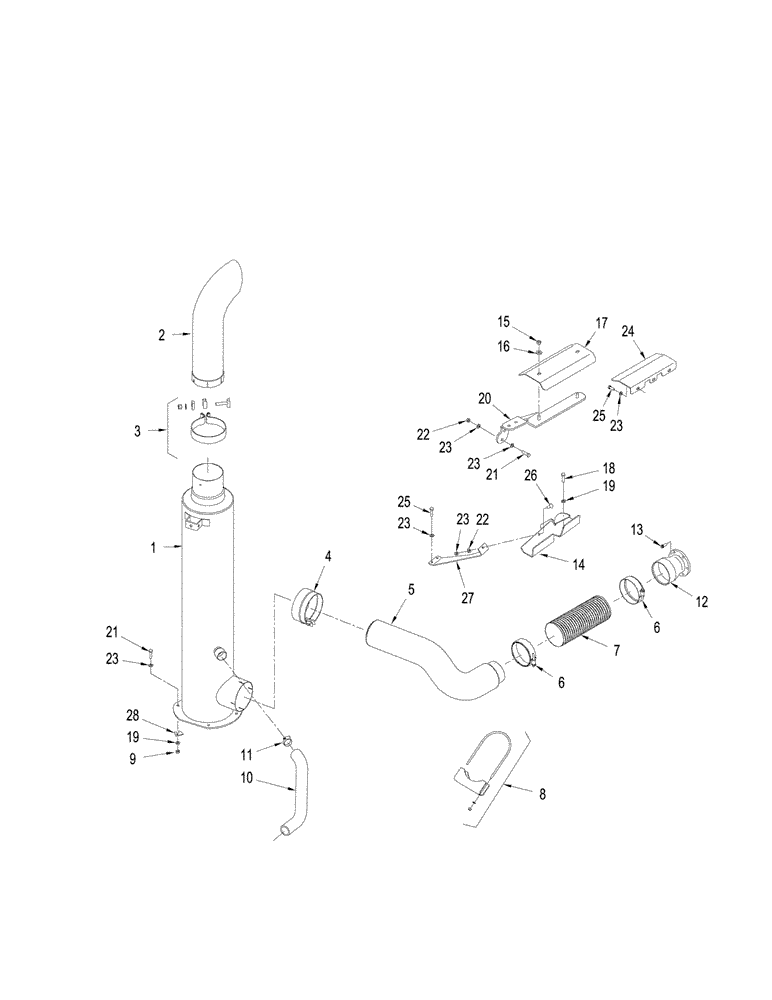

Запчасти Case IH STEIGER 435 (02-19) - EXHAUST SYSTEM - QUADTRAC TRACTOR, STEIGER 385 / 435 (02) - ENGINE

1

87350634

MUFFLER

without Spark Arrestor

1шт.

2

87430635

ELBOW

Inc. 3

1шт.

3

87430634

CLAMP,159.5mm ID

Muffler

1шт.

4

357686A1

ASSEMBLY

1шт.

5

87308237

EXHAUST SYSTEM PIPE,5.00", 6.00" OD

Double Wall

1шт.

6

87406903

COLLAR CLAMP

2шт.

7

87376393

EXHAUST MANIFOLD,5.03 mm ID x 5.27 mm OD x 13 mm L

Flexible

1шт.

8

336658A1

U-BOLT

1шт.

9

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

10

87304384

HOSE,50.80 mm ID x 374.70 mm

Aspirator

1шт.

11

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

12

87308225

ELBOW

Exhaust

1шт.

13

868-10025

12 PT SCREW,M10 x 25mm, Cl 12.9

6шт.

14

87527523

SHIELD

Debris

1шт.

15

829-1412

NUT,M12, Cl 10.9

2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

17

87308232

SHIELD

Heat

1шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

20

87439927

BRACKET

Heat Shield

1шт.

21

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

14шт.

24

87308231

SHIELD

Manifold Heat

1шт.

25

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

26

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

27

87527958

SHIELD

Support, Debris Shield

1шт.

28

404824A1

SHIM

Muffler Mounting

1шт.
