Запчасти Case IH STEIGER 435 (09-41) - HOOD AND SUPPORT, STEIGER 385 / 435 (09) - CHASSIS

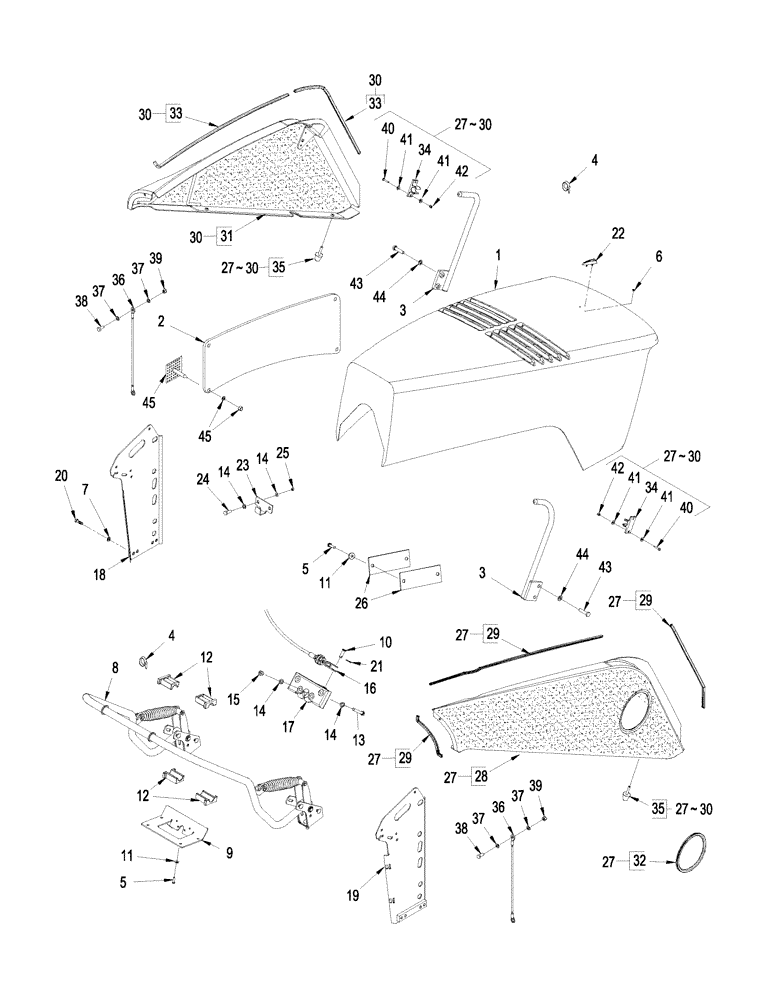

Схема запчастей Case IH STEIGER 435 - (09-41) - HOOD AND SUPPORT, STEIGER 385 / 435 (09) - CHASSIS
12
14
30
38
37
26
2
27
37
33
12
42
27
14
23
41
3
27
29
13
14
28
30
37
44
39
1
14
24
17
36
25
22
20
11
18
35
27
41
44
39
8
27
35
30
16
40
45
21
9
33
19
29
27
27
42
4
5
30
40
7
38
43
36
5
31
43
41
29
32
30
15
34
4
30
34
37
41
10
11
27
27
45
3
30
6

Артикул

Название

Примечание

Количество

1

87443687

HOOD ASSY.

1шт.

2

87308735

FOAM INSULATION

Left-Hand

1шт.

2

87445180

FOAM INSULATION

Right-Hand

1шт.

3

87313225

ARM

Support, Left-Hand, with Lock

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

5

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

4шт.

6

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

8

339543A2

ARM

Lift, See Figure: 09-42

1шт.

9

87367456

BRACKET

Hood Latch

1шт.

10

728-620

CLEVIS PIN,M6 x 20

1шт.

11

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

12

314842A3

BEARING

4шт.

13

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

15

832-10406

NUT,M6 x 1, Cl 8

4шт.

16

443297A1

CABLE,2363mm L

1шт.

17

87550202

LATCH

Hood

1шт.

18

87303387

SUPPORT

Radiator, Left-Hand

1шт.

19

87303386

SUPPORT

Radiator, Right-Hand

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

21

733-1610

COTTER PIN,M1.6 x 10

1шт.

22

87353799

GUIDE

Hood Sight

1шт.

23

87549767

BRACKET, SUPPORTING

Air Cleaner Cover

1шт.

24

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

26

87307537

PLATE

Hood Guide

4шт.

27

87522177

SCREEN

Assy., Engine Debris, Right-Hand, Inc. 28, 29, 32, 34, 35, 40 - 42

1шт.

28

87313232

SCREEN

Engine Debris, Right-Hand

1шт.

29

87313231

SOFT TRIM

Right-Hand, 1861 mm (73-1/4"), Cut From: 87371080

1шт.

30

87313237

SCREEN

Assy., Engine Debris, Left-Hand, Inc. 31, 33 - 35, 40 - 42

1шт.

31

NSS

NOT SOLD SEPARAT

Screen, Engine Debris, Left-Hand

1шт.

32

87313230

SOFT TRIM

Dipstick Hole, 476 mm (18-3/4"), Cut From: 87371080

1шт.

33

87423607

MOLDING

Left-Hand, 1861 mm (73-1/4"), Cut From : 87371080

1шт.

34

87312706

CLIP

1шт.

35

87315570

RUBBER MOUNTING

Spacer

2шт.

36

87422371

CABLE

Debris Screen

2шт.

37

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

39

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

40

614-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

2шт.

41

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

42

832-10405

NUT,M5 x .8, Cl 8

2шт.

43

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

44

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

45

399007A1

ANCHOR

Insulation Mounting Kit

1шт.

46

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

Striker (Not Shown)

1шт.

Выбрано товаров: 47
