Запчасти Case IH STEIGER 435 (09-32) - FRONT FRAME, QUADTRAC TRACTOR, STEIGER 385 / 435 (09) - CHASSIS

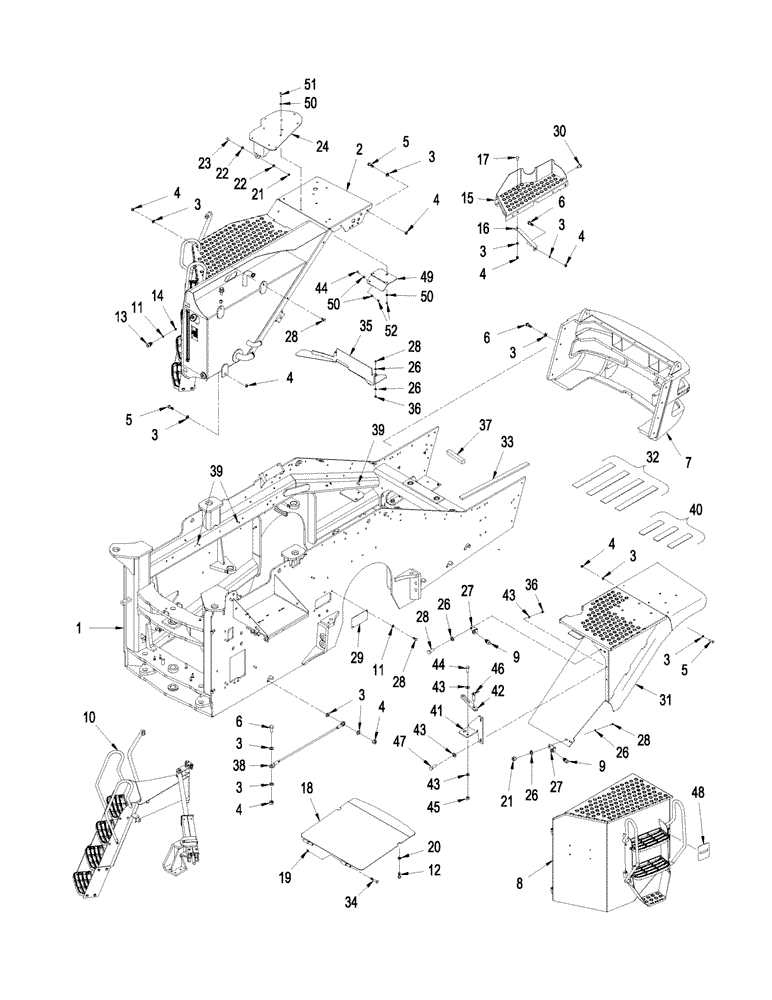

Схема запчастей Case IH STEIGER 435 - (09-32) - FRONT FRAME, QUADTRAC TRACTOR, STEIGER 385 / 435 (09) - CHASSIS
31
27
26
3
23
3
22
34
6
3
21
3
36
22
39
20
50
17
4
11
5
4
44
18
24
43
5
28
5
8
4
3
28
40
36
3
3
28
2
9
19
51
28
30
26
3
32
50
4
42
50
7
45
44
38
6
10
35
11
33
12
4
13
26
29
47
4
9
21
26
43
52
39
3
41
6
15
3
27
43
46
4
14
4
1
26
43
49
16
28
3
48
37

Артикул

Название

Примечание

Количество

1

87427355

FRAME

Front

1шт.

2

NSS

NOT SOLD SEPARAT

Tank Assy, See Figure: 08-20

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

54шт.

4

829-1412

NUT,M12, Cl 10.9

26шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

17шт.

7

323608A3

BUMPER

Front Frame, See Figure: 09-39

1шт.

8

NSS

NOT SOLD SEPARAT

Door Assy, Battery, See Figure: 09-35

1шт.

9

363226A1

BUMPER

Rubber

1шт.

10

336017A1

STEP

Pivot, Left-Hand, See Figure: 09-36

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

N7673

BUMPER

1шт.

14

425-105

NUT,5/16"-18, G5

1шт.

15

87528060

STEP

1шт.

16

86991368

GUSSET

Step

1шт.

17

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

1шт.

18

87309871

DOOR COVER

Access

1шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

22

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

24

87443625

MOUNTING PLATE

Muffler/ Air Intake

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

27

86992264

BRACKET

Door Stop

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

29

87443717

COVER

Access

1шт.

30

384163A1

PLASTIC PLUG

1шт.

31

87663185

4WD FRONT FENDER

RH, Serial Range: -Z8F109701

1шт.

31

87723361

4WD FRONT FENDER

RH, Start Serial: Z8F106701

1шт.

32

1-6835

ADHESIVE STRIP

406 mm (16 in), Anti-Skid

4шт.

33

328197A1

SEAL

3шт.

34

827-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

1шт.

35

87386271

SHIELD

Trash

1шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

37

396412A1

RUBBER STRIP

2шт.

38

87372424

CABLE RETAINER

Retaining

1шт.

39

426285A1

STUD

Threaded

42шт.

40

D55216

PAD,2" x 9"

3шт.

41

87641196

BRACKET, SUPPORTING

Door Lock

1шт.

42

87591014

ADJUSTING PLATE

Door Lock

1шт.

43

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

44

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

45

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

46

132757

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

47

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

2шт.

48

87613511

DECAL

Protective, Lock Cover

1шт.

49

84155412

GUSSET

Support, Fender

1шт.

50

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

51

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

52

832-46410

NUT,M10 x 1.5, Cl 8

3шт.

Выбрано товаров: 53
