(09-10[01]) - SCRAPER DRAWBAR, REYNOLDS, BSN Z9F117292

Запчасти Case IH STEIGER 435 (09-10[01]) - SCRAPER DRAWBAR, REYNOLDS, BSN Z9F117292 (09) - CHASSIS

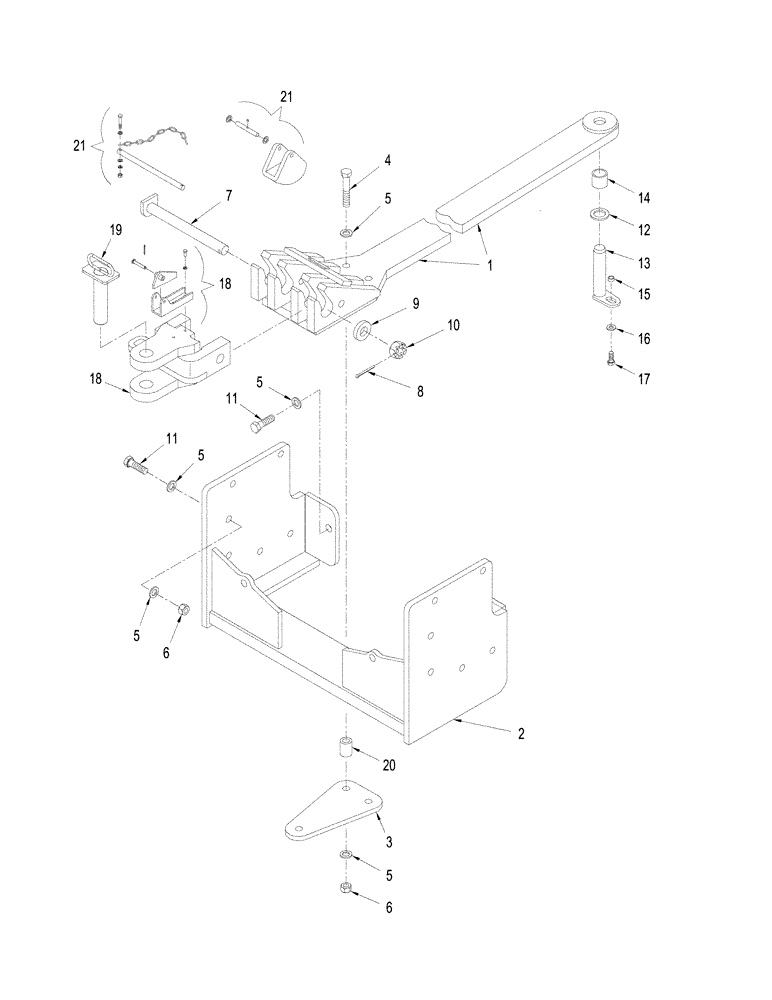

Схема запчастей Case IH STEIGER 435 - (09-10[01]) - SCRAPER DRAWBAR, REYNOLDS, BSN Z9F117292 (09) - CHASSIS
5
2
9
13
18
10
20
21
3
6
18
8
19
17
7
5
5
4
1
16
6
15
21
14
11
11
5
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Drawbar

1шт.

Purchase Assembly and Component Parts Directly From Reynolds, McAllen, Texas.

1шт.

2

87533634

HANGER

Reynolds Drawbar

1шт.

3

87448334

PLATE

Drawbar Mounting

1шт.

4

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

3шт.

5

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

32шт.

6

829-1424

NUT,M24, Cl 10

15шт.

433446A1

HITCH PIN

Inc. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

Pin

1шт.

8

NSS

NOT SOLD SEPARAT

Pin, Cotter

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

NSS

NOT SOLD SEPARAT

Nut, Slotted

1шт.

11

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

14шт.

12

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

76mm OD x 51mm ID x 6mm

1шт.

13

195941A1

PIN,44.37mm OD x 205mm L

1шт.

14

381065A1

SPACER

1шт.

15

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

16

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

365945A1

KIT

Reverse Adaptor, Inc. 18, 19

1шт.

18

446133A1

ASSEMBLY

Reverse Hitch Adaptor - Procure direct from Reynolds, McAllen, TX

1шт.

19

359522A1

PIN

1шт.

20

434402A1

SPACER

3шт.

21

NSS

NOT SOLD SEPARAT

Hitch, Quick

1шт.

Purchase Assembly and Component Parts Directly From Reynolds, McAllen, Texas.

1шт.
