Запчасти Case IH STEIGER 435 (09-09) - DRAWBAR - HEAVY DUTY, WITH THREE POINT HITCH (09) - CHASSIS

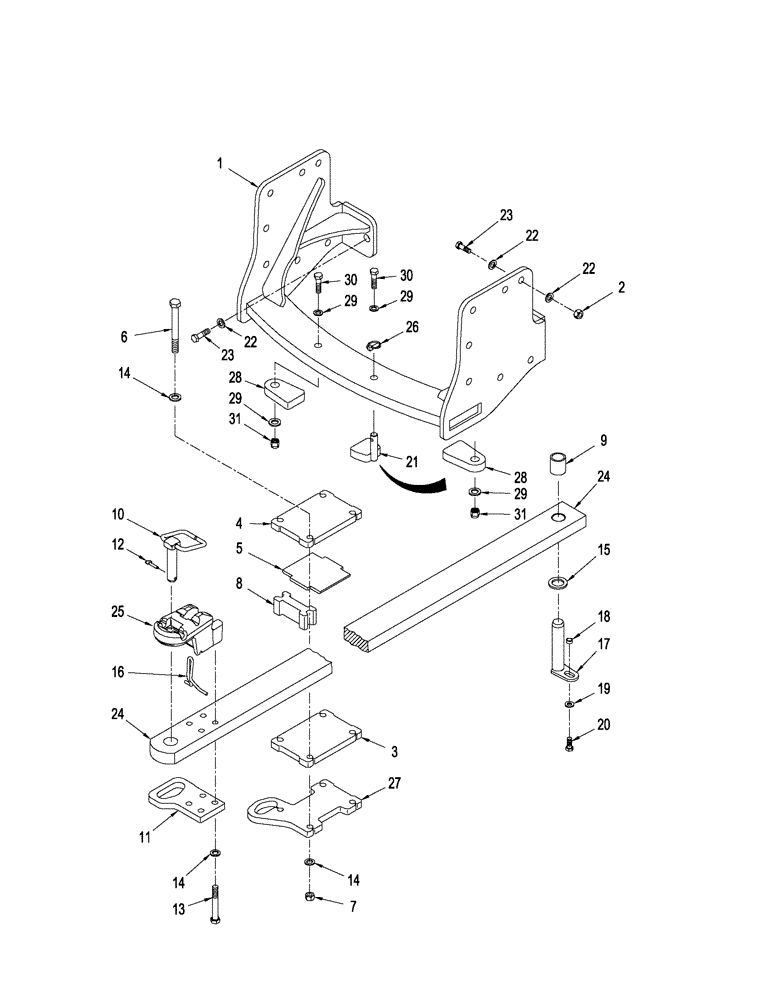

Схема запчастей Case IH STEIGER 435 - (09-09) - DRAWBAR - HEAVY DUTY, WITH THREE POINT HITCH (09) - CHASSIS
2
19
21
6
11
28
14
20
5
14
30
24
29
3
28
31
12
8
14
23
18
31
1
22
29
29
29
22
10
23
7
22
26
9
25
4
30
17
24
16
15
27
13

Артикул

Название

Примечание

Количество

1

87323021

DRAWBAR

Drawbar

1шт.

2

829-1424

NUT,M24, Cl 10

12шт.

3

87567060

PLATE

Drawbar, Bottom

1шт.

4

87564455

PLATE

Drawbar, Top

1шт.

5

87746694

WEAR PAD

1шт.

6

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

4шт.

7

829-1420

NUT,M20, Cl 10

4шт.

8

87564454

SPACER

2шт.

9

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

1шт.

10

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

11

87574391

STEEL PLATE

Safety Chain

1шт.

12

87522067

LOCK PIN,11.5mm OD

1шт.

13

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

14

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

12шт.

15

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

1шт.

16

375721A1

PIN

Drop Pin

1шт.

17

87524404

PIN,50.65mm OD x 252mm L

1шт.

18

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

19

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

21

87655402

HITCH PIN

, Serial Range: -Z8F109750

2шт.

22

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

23

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

24

87566722

DRAWBAR

Heavy Duty

1шт.

STEIGER 385 / 435

1шт.

24

87564456

DRAWBAR

Heavy Duty, Heat Treated, Serial Range: -Z8F109750

1шт.

24

87609236

DRAWBAR

Heavy Duty, Heat Treated, Start Serial: Z8F109750

1шт.

25

375719A1

STRAP

1шт.

26

19-6056

LOCK PIN,7/16" x 1 3/4"

Klick, Serial Range: -Z8F109750

2шт.

27

87577642

BASE PLATE

Drawbar, Bottom

1шт.

QUADTRAC Tractor

1шт.

28

87725363

PLATE

Drawbar Stop, Start Serial: Z8F109750

2шт.

29

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

, Start Serial: Z8F109750

4шт.

30

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

, Start Serial: Z8F109750

2шт.

31

832-10424

NUT,M24 x 3, Cl 8

, Start Serial: Z8F109750

2шт.

Выбрано товаров: 35
