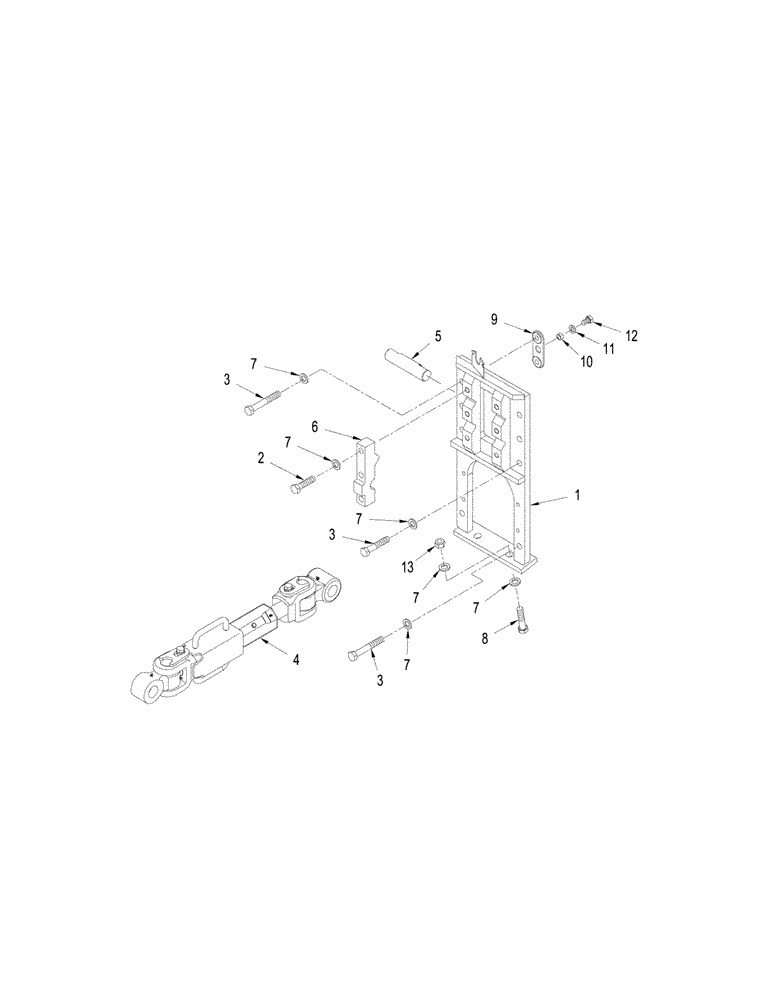

Запчасти Case IH STEIGER 435 (09-04) - THREE POINT HITCH - UPPER LINK, WITH POWER TAKEOFF (09) - CHASSIS

1

403738A1

BRACKET

Mounting, Upper Link, with PTO

1шт.

2

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

6шт.

3

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

8шт.

4

NSS

NOT SOLD SEPARAT

Link, Upper, See Figure: 09-05

1шт.

5

309663A1

PIN

1шт.

6

403737A1

CLAMP

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

8

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

2шт.

9

259389A1

PLATE

Retaining

2шт.

10

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

12

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

4шт.

13

829-1420

NUT,M20, Cl 10

4шт.
