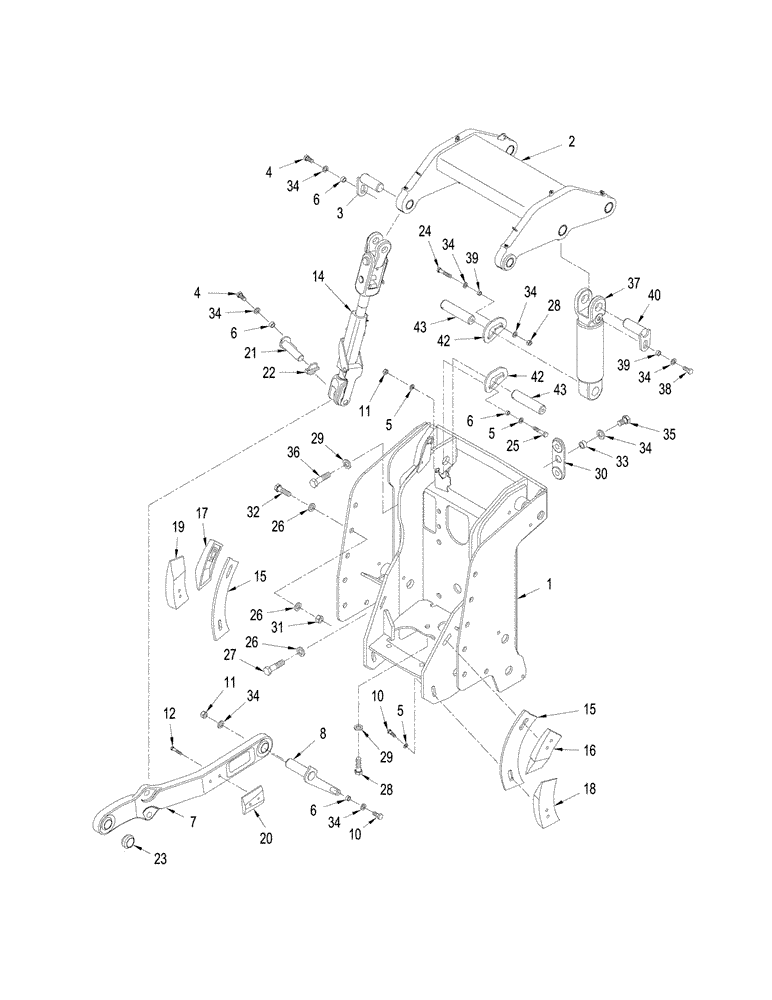

Запчасти Case IH STEIGER 435 (09-01) - THREE POINT HITCH (09) - CHASSIS

1

87323023

MOUNTING PARTS

TPH

1шт.

2

403743A1

ROCKSHAFT

See Figure: 09-02

1шт.

3

70-6013T2

PIN

2шт.

4

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

5

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

8шт.

7

403717A1

ARM

Draft, Inc. 23

2шт.

8

347641A1

PIN

RH

1шт.

9

348061A1

PIN

LH, Not Illustrated

1шт.

10

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

10шт.

11

829-1416

NUT,M16, Cl 10

4шт.

12

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

13

NSS

NOT SOLD SEPARAT

Link Assy, Lift, Right-Hand, Not Illustrated, See Figure: 09-06

1шт.

14

NSS

NOT SOLD SEPARAT

Link Assy, Lift, Left-Hand, See Figure: 09-06

1шт.

15

87544143

MOUNTING PLATE

2шт.

16

403744A1

BLOCK ASSY.

No Sway, RH Upper

1шт.

17

403745A1

BLOCK ASSY.

No Sway, LH Upper

1шт.

18

87544144

BLOCK

No Sway, RH Lower

1шт.

19

87544145

BLOCK

No Sway, LH Lower

1шт.

20

403748A1

BLOCK ASSY.

Wear

2шт.

21

322096A1

PIN,31.85mm OD x 132mm L

2шт.

22

A30338

PIN

Klik

2шт.

23

275912A1

BALL,51.31mm ID x 82.35mm OD

2шт.

24

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

25

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

26

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

28шт.

27

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

4шт.

28

829-1416

NUT,M16, Cl 10

2шт.

29

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

30

259389A1

PLATE

Retaining

2шт.

31

829-1424

NUT,M24, Cl 10

12шт.

32

627-24060

BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd

12шт.

33

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

34

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

35

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

36

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

37

403206A1

CYLINDER ASSY.

TPH Lift, See Figure: 08-40, Serial Range: -Z8F111740

2шт.

37

87304298

CYLINDER

TPH Lift, See Figure: 08-40 (01), Start Serial: Z8F111740

2шт.

38

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

39

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

40

70-5973T2

PIN

2шт.

41

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

42

403204A1

PLATE

Pin Retaining

2шт.

43

321188A2

PIN,50.9mm OD x 215mm L

2шт.

44

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.
