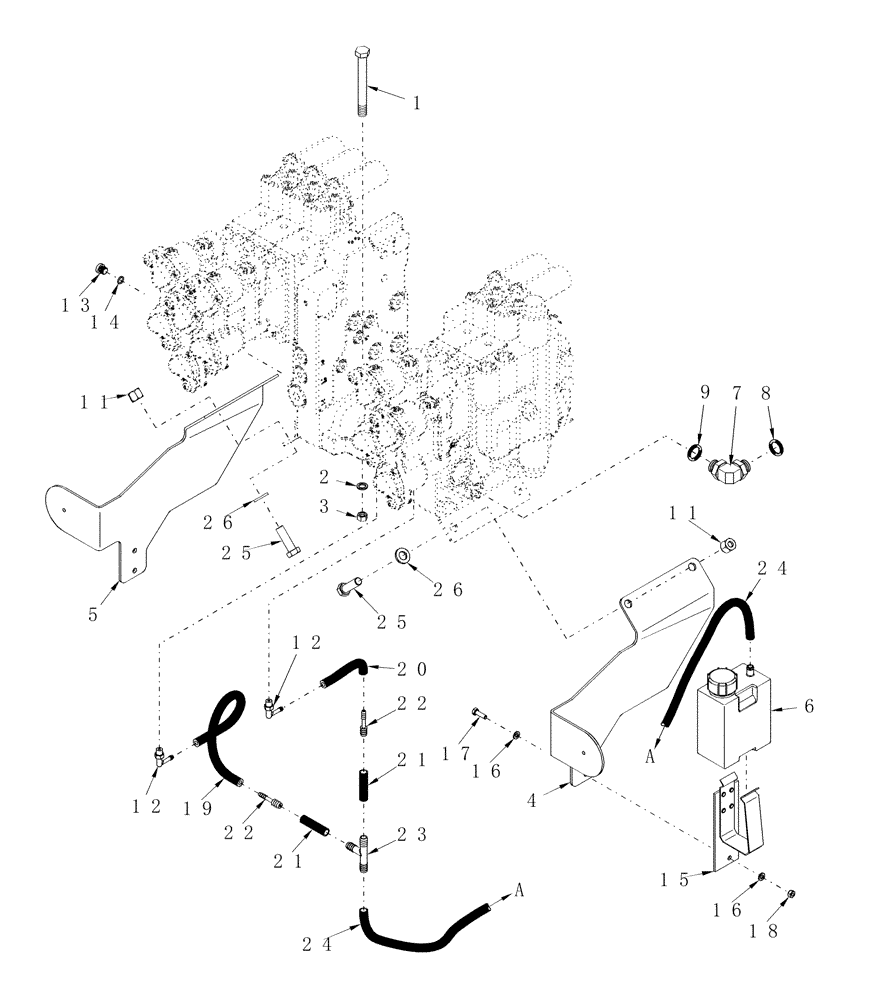

Запчасти Case IH STEIGER 435 (08-31[01]) - HYDRAULIC REMOTE CONTROL VALVE, EUROPE (08) - HYDRAULICS

1

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

87757805

BRACKET

Mounting, RH Drain Bottle

1шт.

5

87757804

BRACKET

Mounting, LH Drain Bottle

1шт.

6

242278A1

BOTTLE,0.6L

Spillage Bottle

1шт.

7

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 8, 9

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

1/4" stem x 1/8" PT

1шт.

13

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 14

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

280909A1

SUPPORT

Bracket, Spillage Bottle

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6 x 12 x 1.6mm

1шт.

17

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

18

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

19

399840A1

HOSE,6.40 mm ID x 135.00 mm

Remote Drain, Cut To Length From 31-1182 Bulk Hose

1шт.

20

400238A1

HOSE

Remote Drain, Bulk 31-1182

1шт.

21

390427A1

HOSE,9.5mm ID x 50mm L

Remote Drain, Cut To Length From A21562X Bulk Hose

1шт.

22

400192A1

REDUCER FITTING

Remote Hose Drain

1шт.

23

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

1шт.

24

31-1208

HOSE,0.38" ID x 12.00"

Remote Drain, 305 mm (12"), Bulk 32-012

1шт.

25

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
